High Tensile Bonnell Spring System
- Hongjiabin
- Henan
- Determined by the order quantity
- 100000 pcs/month

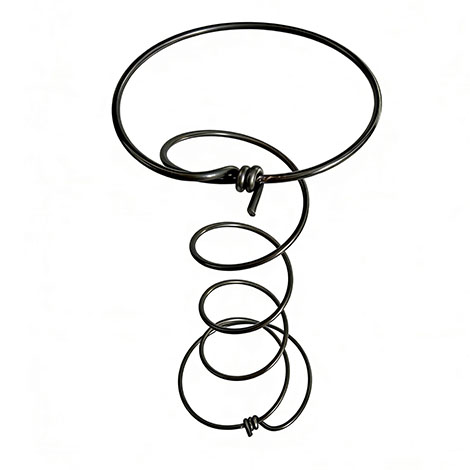

1、The wire of 2.4mm high-carbon steel was used for the production. The wire is continuously wound into the coils without the formation of knots or sharp bends which means that the stress points are not there.
2、Springs are heated and cooled at a very high temperature to eliminate the internal stresses. This results in 30% more rebound capacity, no deformation or sagging even after long-term use.
3、Edge reinforcements are made of the 4.0-5.0mm thick steel wire. They provide very good resistance to compression.
Product Introduction:
One of the biggest worries for people buying spring mattresses is spring fatigue and the spring losing their original shape time after time - more so when the spring constantly compressed in the mattresses or chairs that are used a lot. Springs that are not fully relieved of the internal stresses, result in the loss of their ability to rebound, meaning the mattress will eventually sag, provide less support, and fail prematurely.
Our High Tensile Bonnell Spring System works on this problem by using 2.4mm high-carbon steel wire that is very precisely engineered, continuously wound without knots or sharp bends - thus, stress points are eliminated right from the beginning. Next, the springs are subjected to extremely high-temperature heating and cooling to completely release the internal stresses, resulting in 30% more rebound capacity. Designed to maintain its shape even with daily use. Besides that, the 4.0–5.0mm steel edge reinforcements offer amazing compression resistance, which ultimately ensures that the structure will remain intact and the performance will be long-lasting - something your B2B clients will definitely be able to rely on.
Product Advantages Comparison
| Feature | Our High Tensile Bonnell Spring System | Typical Competitor Products |
|---|---|---|
| Wire & Coil Structure | Single high-carbon steel wire, continuously wound for even force distribution and stable support | Multiple wire segments or lower-grade steel, leading to inconsistent tension and weak spots |
| Knots & Stress Points | Knot-free design eliminates stress concentration points | Knots or sharp bends create stress points that accelerate fatigue |
| Heat Treatment | Comprehensive heat treatment process ensures structural integrity | Minimal or no heat treatment, resulting in higher height loss over time |
| Height Loss After 100,000 Cycles | Less than 2% – maintains original shape and support | Often 5–10% or more, causing premature sagging |
| Edge Reinforcement | 4.0–5.0mm thick steel wire for superior compression resistance and durability | Thinner or weaker edge wire, prone to deformation under heavy load |
| Breathability | Large open spaces between coils promote excellent airflow | Dense or closed coil patterns trap heat and moisture |
| Production Process | Well-established and economical – optimized for large-scale purchasing and project installations | Inconsistent or less efficient production, leading to higher costs and longer lead times |
| Overall Durability | No deformation or sagging even after long-term, heavy use | Gradual loss of support, requiring earlier replacement |
Product Specifications
| Parameter | Details |
|---|---|
| Spring Type | High Tensile Bonnell Spring System |
| Wire Material | High-carbon steel (exact grade available upon request) |
| Continuous Coil Wire Diameter | 2.0 – 2.4 mm |
| Cross Wire Diameter | 1.5 – 1.8 mm |
| Edge Wire Diameter | 4.0 – 5.0 mm |
| Spring Height Range | 12 – 18 cm (custom heights available) |
| Heat Treatment | High-temperature heating + rapid cooling (internal stress fully eliminated) |
| Knot / Sharp Bend | None – continuous knot-free winding |
| Height Loss After 100,000 Cycles | < 2% |
| Standard Widths | 494 mm / 532 mm / 608 mm / 722 mm |
| Length | Customizable per order |
| Open Space Between Coils | Large openings for optimal breathability |
| Edge Reinforcement | 4.0–5.0 mm thickened steel wire for enhanced compression resistance |
| Surface Finish | Clean, oil-free (or as specified) |
| Packing Method | Compressed and strapped in bundles or pallets |
| Container Loading | Standard 20FT / 40FT container (quantity available upon request) |
| Lead Time | 25–35 working days |
| Certification / Standards | ISO 9001:2015 |
Custom Services:
We provide the option to personalize spring measurements, wire diameters, edge details, and packing styles.
The scale of the project and the application requirements can be the guide to vary the spring characteristics.
ABOUT US
Established in 2002, Jilin Hongjia Bin has consistently worked on developing and producing mattress materials and springs for more than two decades. Currently, the company has 168 employees and operates out of a 58,000 square meter plant that houses over 20 kinds of specialized machines, with a production level of over 95% automation. The company has its own spring research and development division, where the key technical personnel have more than 10 years of industry experience.
We produce 100,000 springs per month and deliver more than 300,000 orders every year to our loyal customers. Moreover, all our products have SGS test certificates which guarantee traceable quality.
Our products have been shipped to over 20 countries, such as the US, Canada, South Africa, Turkey, Southeast Asia, Europe, and the Middle East. In addition, we have served more than 200 customers worldwide.
OUR SGS Certification
Hongjiabin springs have received SGS certification and they have been tested according to the standards of material composition, tensile strength, and durability.
OUR Quality Certification
Our product was inspected by SGS and meets the quality standards of ISO9001:2015. The spring wires underwent testing by independent labs, and the results showed that the tensile strength, elastic limits, and other factors significantly exceed the industry standards. Our production system has been certified to ISO14001 (Environmental Management) and ISO45001 (Occupational Health and Safety).
Environmental Management System Certification No. :17723 EU0066-10ROM
China Environmental Labeling Product Certification No. :CEC2024ELP4225104
China Green Product Certification No. :COM236GPP004397
Logistics and Shipping:
Delivery Time: Normally 25-35 days after getting order details plus confirmation, and also depending on order quantity.
Shipping Methods: We can ship by sea, rail or land as per customer's requirements.
Packaging: We provide packaging that is bundled or palletized and is capable of being customized according to order quantity.
Sales Reach: Our product line is being exported worldwide in over 20 different countries including the US, Canada, South Africa, Turkey, Southeast Asia, Europe, and the Middle East.
Order & Sample Information
MOQ: 500 units per order (sample order acceptable)
Samples: Available within 7–10 working days. Sample fee refundable on bulk order.
Payment: 30% T/T deposit, 70% T/T before shipment. L/C at sight available for qualified buyers.
After-Sales Service:
We back our products with a 15-year warranty and fix any defects in materials or workmanship free of charge. The main members of our technical staff have 10+ years of experience and they not only give remote technical assistance but also conduct on-site support. We keep the after-sales record for each order to monitor delivery and usage. Our regular clients have the option to work out tailor-made maintenance plans.
Exhibitions:
Between 2024 and 2025, we presenced in Northeast Asia as well as Central Asia by presenting our products at the Ulaanbaatar Construction Expo in Mongolia and the Tashkent Construction Expo in Uzbekistan. We will introduce our cold-resistant spring materials and establish contacts with hotel buyers in Mongolia at the Ulaanbaatar expo. In Uzbekistan at the Tashkent expo, our environmentally friendly production methods attracted the attention of importers, and we are still in discussions regarding some possible orders.
