7 Zone Pocket Spring Mattress
- Hongjiabin
- Henan
- Determined by the order quantity
- 30,000 pcs/month
1. The 7-Zone pocket spring mattress that we have created features a 7-zone independent pocket spring system which is ergonomic and offers various levels of support in accordance to the body zones.
2. We have our own spring manufacturing lines that we can use at any time which allows us to personalize wire gauge, height, density, and the zone distribution ratios to a very high degree.
3. Besides customization options of mattress dimensions, fabrics, and comfort layers, we also have the capability to meet large-volume orders.
Product Overview:
Using single-zone mattress springs or poorly constructed multiple zone mattresses can lead to spinal misalignment. One usually ends with friends who are very unhappy with the mattress and are sharing that with you, family members are not happy about the mattress, and customers are complaining about waking up with a pain in their back and/or neck, or discomfort in the shoulders and hips. If that case continues without resolving it, it becomes damaging for the company in terms of negative reviews, increase in return requests, and customers who don't want to come back.
There are countless suppliers who advertise “zoned” mattresses. However, only a few are willing to show the real pressure diagram alongside the proof of customization.
Our Solution – 7-Zone Independent Pocket Spring Mattress:
Our mattress features separate pocket springs in 7 different zones, with wire gauges varying from 1.2mm (softer for shoulders) to 1.8mm (firm for lumbar and hips). This setup makes for the perfect distribution of support: shoulders give way slightly, the spine is supported, lumbar area is lifted, and the hips are firmly supported – thus achieving natural spine support both for side and back sleepers.
Motion isolation can be measured by the number of springs per m² 500–600 that means our mattress significantly isolates motion (the comparison with Bonnel springs, which was our internal test, showed about 60% isolation, the actual report we have is available for you on request). You can choose custom options such as spring height 12–24cm, comfort layer made from latex, memory foam, wool, together with the fabric finishing.
Outcome: Reduced number of complaints, decreased customer return rate, and a top-rated sleep quality offering for hotels, retail brands, and commercial projects.

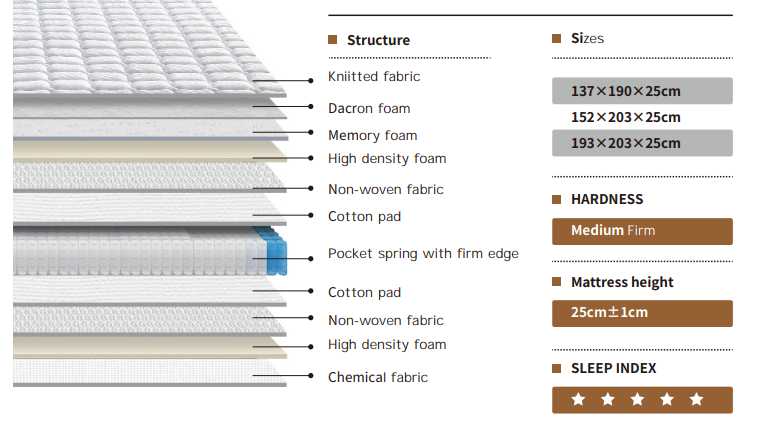

Product Specifications – 7 Zone Pocket Spring Mattress
| Category | Parameter | Details |
|---|---|---|
| Basic Info | Product Name | 7-Zone Independent Pocket Spring Mattress |
| Brand | Hongjiabin | |
| Mattress Height | 25cm ± 1cm (customizable: 20–35cm) | |
| Firmness Level | Medium firm (customizable: soft / medium / firm) | |
| Weight (approx.) | 25–35 kg (depends on materials) | |
| Spring System | Spring Type | Independent pocket spring (Marshall coil) |
| Wire Material | High-carbon steel (70# / 72B / 82B) | |
| Wire Diameter Range | 1.2mm – 1.8mm (varies by zone) | |
| Spring Diameter | 4.0cm – 5.0cm | |
| Spring Height (free) | 12cm / 15cm / 18cm / 20cm / 24cm (customizable) | |
| Number of Coils per Spring | 4 – 7 turns | |
| Spring Density | 500 – 600 springs per m² | |
| Zoning | Number of Zones | 7 zones (head, shoulder, lumbar, hip, thigh, calf, foot) |
| Zone Distribution | Shoulder: softer (1.2mm wire), Lumbar/Hip: firmer (1.6–1.8mm wire) | |
| Comfort Layers | Top Comfort Layer | High-resilience foam / Latex / Memory foam (customizable) |
| Comfort Layer Thickness | 3cm – 5cm | |
| Bottom Layer | Non-slip base fabric + foam stabilizer | |
| Cover & Fabric | Cover Material | Knitted fabric / Tencel / Bamboo / Anti-bacterial fabric (customizable) |
| Cover Features | Breathable, hypoallergenic, removable (optional) | |
| Edge Support | Reinforced foam edge or firm pocket springs on perimeter | |
| Performance | Motion Transfer Reduction | >60% (compared to traditional Bonnell springs) |
| Compression Cycles | 80,000+ cycles (height loss <5%, ASTM D3574) | |
| Pressure Distribution | 7-zone design reduces peak pressure points by 30–40% | |
| Customization | Dimensions | Any custom size available |
| Spring Configuration | Wire gauge, height, density, zone ratios all customizable | |
| Comfort Layer | Foam / Latex / Memory foam / Wool / Cotton | |
| Fabric | Pattern, color, material, treatment (anti-dust mite, anti-bacterial) | |
| Order & Delivery | MOQ | 50 units (mixed sizes allowed) |
| Sample Lead Time | 10–15 days | |
| Bulk Lead Time | 25–35 days after deposit confirmation | |
| Supply Capacity | 30,000 pcs per month | |
| Certifications | Quality | ISO9001, SGS certified |
| Environmental | ISO14001, CQM China Green Product, Ten Rings | |
| Material | GB/T 4357 (spring steel wire standard) | |
| Warranty & Support | Warranty | 15 years for spring system; 3 years for comfort layers |
| After-Sales | Technical support, remote guidance, on-site service available |
CORE ADVANTAGES – How We Compare
You usually get mattresses: 1 - 3 zones, with one type of spring wire throughout whole mattress
We have 7 zones and spring wires vary as follows: shoulders - 1.2mm, hips/lumbar - 1.8mm, etc.
Others: 200-300 pocket springs per square meter
Our spring rate is 500-600 springs per square meter, i.e. double the number of support points.
Normal: they last about 30,000 to 50,000 cycles of compression before the springs start to sag.
We run our tests with about 80,000 cycles at most and height reduction is less than 5%. (ASTM D3574)
Many offer limited options only for size and fabric.
We can customize the following: wire gauge per zone, spring height, density, comfort layer, fabric treatment.
We 1-5 year warrantee mostly
We offer 15 year pro-rated (with the warranty cost increasing each year) springs breakage warranty; 3 years comfort layer sagging (over a depth of 1.5cm) total warranty
CUSTOM SERVICES
We understand that hotels, mattress brands, and commercial buyers have unique requirements. One standard product does not fit all projects.
WHAT YOU CAN CUSTOMIZE:
Spring System: Wire gauge per zone (1.2–1.8mm), spring height (12–24cm), spring density (500–600/m²), zone distribution ratios
Mattress Dimensions: Any length and width (standard or metric)
Mattress Height: 20–35cm (standard 25cm)
Firmness Level: Soft / Medium soft / Medium / Medium firm / Firm
Comfort Layer: Material: foam / latex / memory foam / wool / cotton;
Thickness: 3–5cm
Material: knitted / Tencel / bamboo / cotton;
Color & pattern: any;
Treatment: anti-bacterial / anti-dust mite / moisture-wicking
Edge Support: Foam encasement or firmer pocket springs on perimeter
Packaging: Roll-pack (vacuum compressed) or flat-pack; custom carton labeling with your brand
HOW CUSTOMIZATION WORKS:
Step 1 – You provide: Target market (hotel / retail / online), preferred firmness, estimated order volume
Step 2 – We recommend: Optimal spring configuration + comfort layer combination based on your requirements
Step 3 – Sample: 10–15 days, shipped to your location
Step 4 – Bulk order: 25–35 days after sample approval and deposit confirmation
MINIMUM ORDER QUANTITY (MOQ):
- Sample order: 1–5 units (any specification)
- Bulk order – Custom specifications: 50 units per design
- Bulk order – Standard specifications: 100 units (mixed sizes allowed)
WHY CHOOSE HONGJIABIN
We manufacture our own springs (not assembled from third-party components)
20+ years of spring R&D and mattress manufacturing experience
168 skilled staff, 58,000m² production area, 95%+ automation
PRODUCTION CAPACITY
- 30,000 finished mattresses per month
- 300,000+ mattresses supplied annually
IN-HOUSE SPRING MANUFACTURING
- 100,000 mattress spring cores produced monthly
- Continuous Coil, Bonnell and Pocket Spring systems
- Spring cores supplied both for internal mattress production and external OEM customers
- Complete control from spring production to mattress assembly
Our Quality Testing Report
Hongjiabin springs have received SGS certification and they have been tested according to the standards of material composition, tensile strength, and durability. This is the reason why these springs can still perform well even in high-frequency usage environments.
Our Certifications:
Environmental Management System Certification No. :17723 EU0066-10ROM
China Environmental Labeling Product Certification No. :CEC2024ELP4225104
China Green Product Certification No. :COM236GPP004397
Logistics and Transportation：
Delivery Time (from deposit to shipment):
Sample (1–5 units): 10–15 days
Bulk standard: 20–25 days
Bulk custom: 30–35 days
Shipping Methods & Transit Time:
Sea (FOB Qingdao/Shanghai): 12–40 days (depends on destination)
Rail (to Europe/Central Asia): 18–25 days
Air (samples/urgent): 5–7 days
Packaging:
Flat-pack: 8–12 units/pallet, 40–50 units/20GP, 90–110 units/40HQ
Roll-pack (vacuum compressed): 25–40 units/pallet, 180–220 units/20GP, 400–450 units/40HQ – saves 30–40% on shipping cost
Custom Packaging:
Carton printing, labels, shipping marks, user manuals – MOQ 100 units
Order Tracking:
B/L or AWB, packing list, commercial invoice provided within 24 hours after shipment.
PAYMENT INFORMATION
Payment Terms (T/T wire transfer):
- 30% deposit upon order confirmation
- 70% balance against copy of Bill of Lading
First-time orders: 70% before shipment may be required (negotiable after first order)
Sample Payment:
100% in advance before production
Buyer pays shipping or provides courier account
