3 Zone Pocket Spring Mattress

Product Introduction:

In hotels and healthcare establishments, customers sit at the mattress edge several times daily. Regular mattress edges collapse quickly due to constant pressure making the usable sleep area get smaller and the sleep support feel unstable.

Guests sit on a bed to put on shoes or get up after a nap. The mattress edge caves in. They become insecure about the mattress. The bed appears old and sagging far before the scheduled time for replacement.

As a consequence, the customer thinks that the room is "used up", there are rising maintenance costs, you are forced to replace the bedding at a short cycle and there is more than one bad review.

Our Solution – 3 Zone Pocket Spring Mattress featuring a Reinforced Edge System.

Standard foams around the edges are used in regular mattresses. Under pressure, foams break. Our edge system comprises two layers; one is a 5–10cm-high-density-foam encasing of the surrounding and the other is a 2.2mm-thick wire spring of the outer two rows.

Central to the mattress design is a 3-zone system of pocket springs which independently regulate support by weight transfer to spread the force uniformly over the surface resulting in lesser stress point load bearing capacity of individual springs and localized sagging prevention.

We use high-carbon steel springs (2.0–2.2mm) which pass the 100,000+ compression test. As a result, springs retain their shape as well as the mattress.

Edge support is only part of the change. Your mattress will stay good-looking for far more extended periods. You won’t be seeing edge sagging, and nobody will be telling you, "the mattress is giving in." Just rest with peace of mind and get praised with a great rating after being a hotel guest.

Benefits: Edges will support very firm. Full area of sleep. 10–15 year life. Lesser need for replacements. Lesser complaints. A better return on ‍‌‍‍‌investment.

Technical Specifications

Core Advantages – 3 Zone vs Standard Options

Targeted‍‌‍‍‌ Zone Support
While standard mattresses give the entire body the same support, we have devised a 3-zone system that offers different levels of support per zone – gentle on the shoulders and supportive of the lower back and hips. This way, your spine is naturally aligned.

Thicker Wire, Longer Life
Normal springs have a thin wire thickness in the range of 1.7–2.0 mm and, over time, lose their tension. The springs of our mattress are made out of 2.0–2.2 mm of high-carbon-content steel. These have been tested for 100.000+ cycles – providing an equal support level during the duration of the mattress's life.

Multi-Layer Comfort
Latex natural (2–5 cm) provides elasticity and speed of recovery. In addition, a memory foam layer (3–5 cm) allows the mattress to conform to the body and relieve pressure points. A high-resilience foam layer (2–4 cm) provides the transition from comfort to support – a perfect combination of technologies!

Reinforced Edges
The 5–10 cm foam encasement, or 2.2 mm reinforced edge springs, will give a mattress support not just from springs and fillings, which will help the sleeping surface last longer.

Motion Isolation
With independent pocket springs, the reduction rate of transfer of body movement is >60% compared to Bonnell coils and other non-encapsulated springs. It is perfect for the restless partner!

Compressed Packaging
A roll-pack vacuum packing decreases the shipping volume by 70% – the freight cost is decreased by 30-40%.

The Bottom Line: Choose 3 Zone Pocket Spring if you need targeted zone support for proper spinal alignment – ideal for hotels, healthcare, and quality-conscious buyers.

Recommended Applications

• Hotels (mid to high-end)

• Healthcare & wellness facilities

• Furniture retail

• Premium residential use

• Back pain sufferers

•


Customization Services

Size: Any dimension – MOQ 50 units.

Firmness: Adjustable via spring tension and foam density – MOQ 50 units.

Zone Layout: 3-zone standard – MOQ 100 units.

Comfort Layer: Latex, memory foam, high-resilience foam – thickness and density adjustable – MOQ 50 units.

Fabric: Premium knitted fabric / Tencel / Fiber, custom color/pattern – MOQ 50 units.

Logo Printing: Custom branding on mattress surface or packaging – MOQ 100 units.

Customization Process:

• Step 1: Send your requirements (size, firmness, quantity, fabric preference)

• Step 2: We recommend the optimal configuration

• Step 3: Sample production – 7 to 10 days (paid sample, refundable on bulk order)

• Step 4: Bulk production – 20 to 30 days after sample approval

MANUFACTURING PROCESS

1.‍‌‍‍‌ Preparing the wire: High-carbon steel – drawn down to 2.0–2.2mm

2. Spring winding: Entirely automated – pocket springs, with a tolerance of ±0.5mm

3. Zone assembly: 3-zone system – springs sorted by their tension per zone

4. Edge reinforcement: 5–10cm foam encasement or 2.2mm edge springs as alternative

5. Pocket sealing: Each spring individually wrapped in nonwoven fabric and sealed via ultrasonic welding

6. Layer assembly: Latex + memory foam + HR foam + spring system + base joined at the end

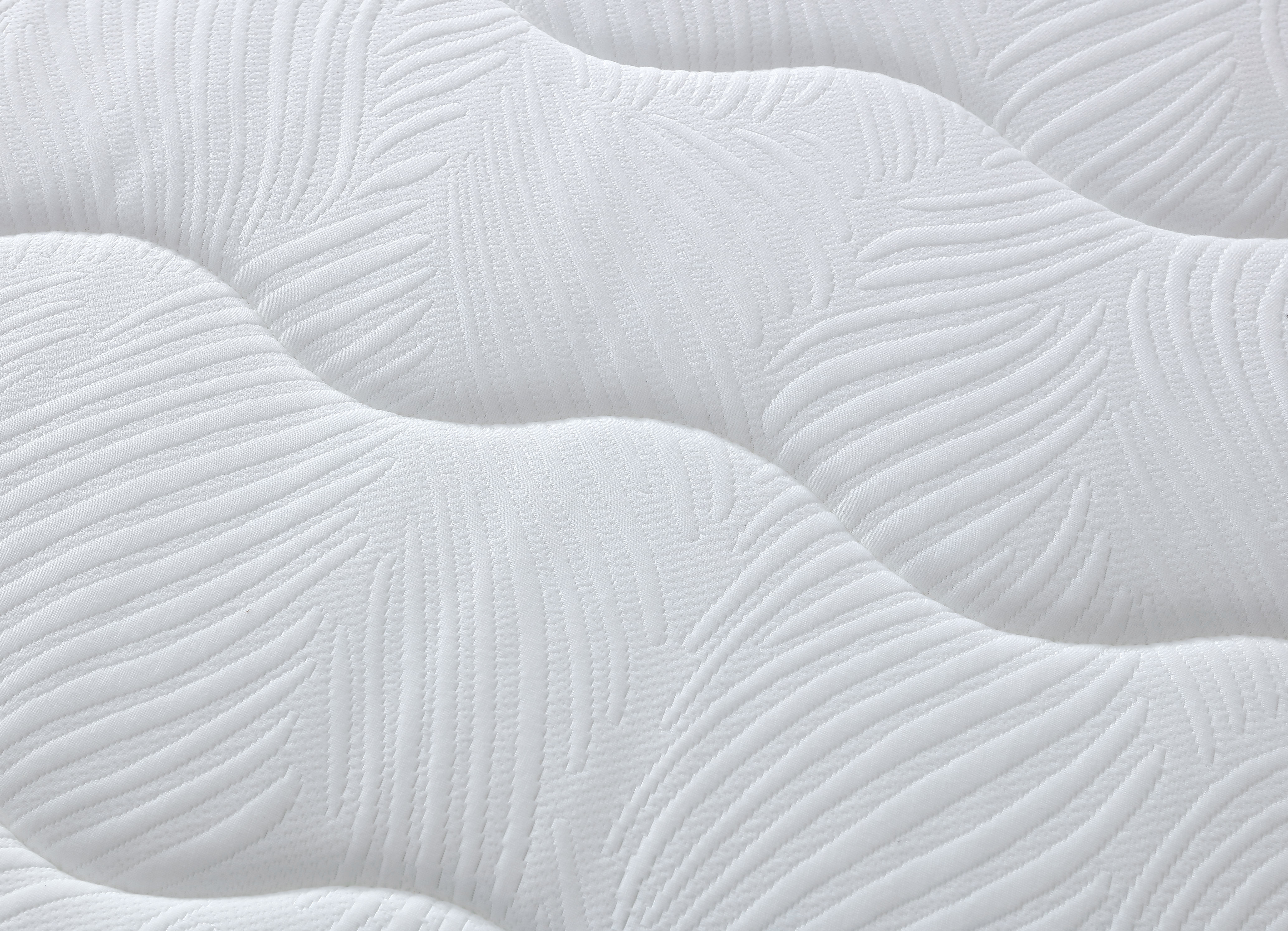

7. Quilting: High-quality knitted fabric as cover

8. Quality inspection: Monitoring in real-time done at each processing step

9. Vacuum compression & roll packing: Volume is reduced by 70% via compression, then the mattress is rolled up and packed into a box

Automated system level is more than 95%. A variety of equipment numbering over 20 pieces is used. <0.5% defect ‍‌‍‍‌rate.

ABOUT US – HONGJIABIN

Established in 2002, Hongjiabin specializes in mattress materials and spring technology, integrating R&D, production, and sales for over 20 years.

FACILITY & WORKFORCE:

- 168 employees

- 58,000 m² modern factory

- Full in-house production: springs, foam, quilting, packaging

- 20+ types of equipment

- 95%+ automation rate

PRODUCTION CAPACITY:

- 30,000 finished mattresses per month

- 100,000 mattress spring cores per month (for internal use + external OEM sales)

QUALITY CONTROL:

- Defect rate: <0.5%

- Real-time monitoring on production lines

- Dedicated QC team at each stage

CERTIFICATIONS:

- ISO9001, ISO14001, SGS certified

- CQM China Green Product Certification

- China Environmental Label (Ten Rings)

GLOBAL REACH:

- Exported to 20+ countries (US, Canada, South Africa, Turkey, Southeast Asia, Europe, Middle East)

- 200+ long-term global partners

All certificates and test reports available upon request.

Quality Testing：

SGS Test Report No.: GZIN2512005025PL01_EN

Test report (see below). Additional copies available upon request.

Quality Endorsement:

Environmental Certification

ISO 14001 Environmental Management System

No: 17723 EU0066-10ROM

→ Covers factory environmental management and production process control

China Environmental Labeling Product Certification

No: CEC2024ELP4225104

→ Ensures product meets national eco-friendly safety standards

China Green Product Certification

No: COM236GPP004397

→ Validates sustainable materials and green manufacturing compliance

Production Video

ORDER & LOGISTICS

Minimum‍‌‍‍‌ Order Quantity:

- Sample: 1-5 units (paid sample, refundable on bulk order)

- Bulk standard: 50 units (mixed sizes are permitted)

- Bulk custom: 50 units per design

Mode of Payment:

- 30% deposit when order is confirmed.

- 70% payment upon receipt of Copy of BL (T/T)

Shipping Methods and Transit Time:

- By sea (FOB Qingdao): 20-40 days (US ~ 25 days, Europe ~35 days, South East Asia ~12 days)

- By railway (Europe/Central Asia): 18-25 days

- By air (samples/urgent): 5-7 days

Lead Time (from the date of deposit to the date of shipment):

- Sample: 7-10 days

- Bulk standard: 20-25 days

- Bulk custom: 25-30 days

Packaging:

- Standard: Vacuum compressed roll packed - reducing the volume by 70%

- Roll packed: 180-220 units/20GP, 400-450 units/40HQ

- Flat pack: To order

Documents:

- Either Bill of Lading or Air Waybill, as the case may be
- A packing list indicating quantities and weights
- A commercial invoice for customs ‍‌‍‍‌clearance

AFTER-SALES SUPPORT

The‍‌‍‍‌ company offers the following warranty for the mattress.

- The spring mechanism covers 15 years.

- The foam layers: from 3 to 5 years.

- It is a standard warranty with cover for manufacturing defects in material and workmanship under normal use

Things which the warranty does NOT cover:

- General aging

- Color loss, dirt, or changes due to use

- Not following directions of the use, dropping down, or overloading the item

- Any changes done by outside parties.

Claim Steps:

- Tell us your problem by providing the batch number, photos or videos explaining the defect, and the purchase date of the product

- Our support team will call or mail to you with their reply within 48 hours

- We will send you the replacement parts free of charge, while the customer will be responsible for the return shipment costs only

Tech Help:

- Guidance via remote assistance absolutely free

- If needed, the customer can also hire service technician from us who can come to their home (availability, conditions, charges of it might be different depending on the ‍‌‍‍‌place)

OUR EXHIBITIONS

2025 Korea International Building Materials Expo (Seoul, South Korea, Booth A1112):

Showcased 3-zone pocket spring mattresses. 30+ buyer inquiries received. Brochure available upon request.

2025 Ulaanbaatar Interior Decoration and Building Materials Expo (Mongolia, Booth N02):

Showcased 3-zone pocket spring mattresses. 30+ buyer inquiries received. Brochure available upon request.
