Bonnell Spring Mattress
- Hongjiabin
- Henan
- Determined by the order quantity
- 30,000 pcs/month
1. Most standard spring mattresses come with a Bonnell spring at its center. This type of spring is made of coils connected by spiral steel wires that form a network which mainly supports the even spreading of weight and also offers a high load capacity.
2. Apart from the mattress edges being strengthened by a steel wire frame to make them thicker, the frame also serves as a mattress anti-sagging device and, at the same time, increases the usable sleeping area.
3. Because it is a well-designed and reliable product, this mattress is very affordable. So, it is an ideal product for buying a large quantity and new projects.
Product Introduction
Buying mattress for hotels, managing dorms, or developing projects, the main challenge is looking for quality mattresses that won't break the budget. Of course premium mattresses with individual springs will last forever, but they are simply too expensive to consider.
On the other hand, low budget foam mattress will not keep its shape and will give in only after 1–2 years of use and in the end, it's not cost effective if you have to replace them frequently.

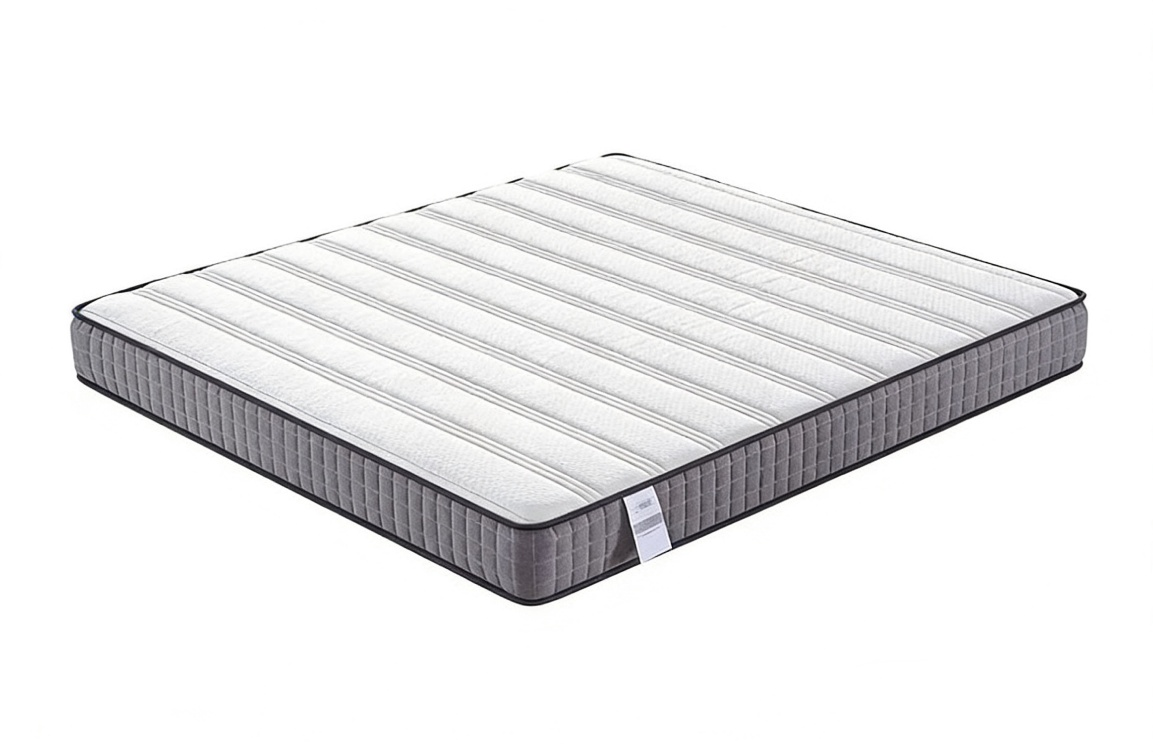

Our solution: Open coil spring (Bonnell) mattress.
Ours open coil mattress has an hourglass-shaped Bonnell spring design - spring ends are wider, and middle part is narrower, and they are joined together by spiral steel wires. The edge frame will make the sleep surface more durable and also prevent the mattress from sagging.
The major springs are 1.8 to 2.2mm wire thickness and 1.5 to 1.8mm connecting wire thickness, the design has capacity of 120 to 150kg load per person. The springs are heat tempered so that internal stress is removed; elasticity as well as life span of the mattress are enhanced.
Overall thickness: 20 to 25cm. A variety of covers and layer of comfort available.
Benefits for the user: Proven to last - Cost-effective - Made especially for the high occupancy and low cost project types.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Basic Info | Product Name | Open Coil (Bonnell) Mattress |
| Brand | Hongjiabin | |
| Finished Thickness | 20–25cm (customizable) | |
| Firmness Level | Medium Firm / Firm | |
| Weight (approx.) | 15–25kg (depends on size and thickness) | |
| Spring System | Spring Type | Bonnell coil (hourglass-shaped) |
| Wire Material | High-carbon steel (70# / 72B) | |
| Main Spring Wire Diameter | 1.8mm – 2.2mm | |
| Connecting Wire Diameter | 1.5mm – 1.8mm | |
| Spring Height | 12 – 18cm | |
| Number of Coils per Spring | 4 – 6 turns | |
| Spring Connection | Interconnected by spiral steel wires | |
| Edge Reinforcement | Steel wire frame around perimeter – prevents sagging | |
| Heat Treatment | Yes – removes internal stress for durability | |
| Comfort Layer | Material | Foam / Knitted fabric |
| Thickness | Varies by configuration | |
| Cover & Fabric | Standard Fabric | Knitted fabric / Jacquard fabric |
| Fabric Weight | 200 – 350g/m² | |
| Functional Treatments | Anti-bacterial, breathable (optional) | |
| Performance | Load Capacity | 120 – 150kg per person |
| Compression Cycles | 100,000+ cycles – minimal deformation | |
| Lifespan | 10 – 15 years under normal use | |
| Edge Support | Reinforced steel frame – prevents edge collapse | |
| Breathability | Good – open coil design allows airflow |

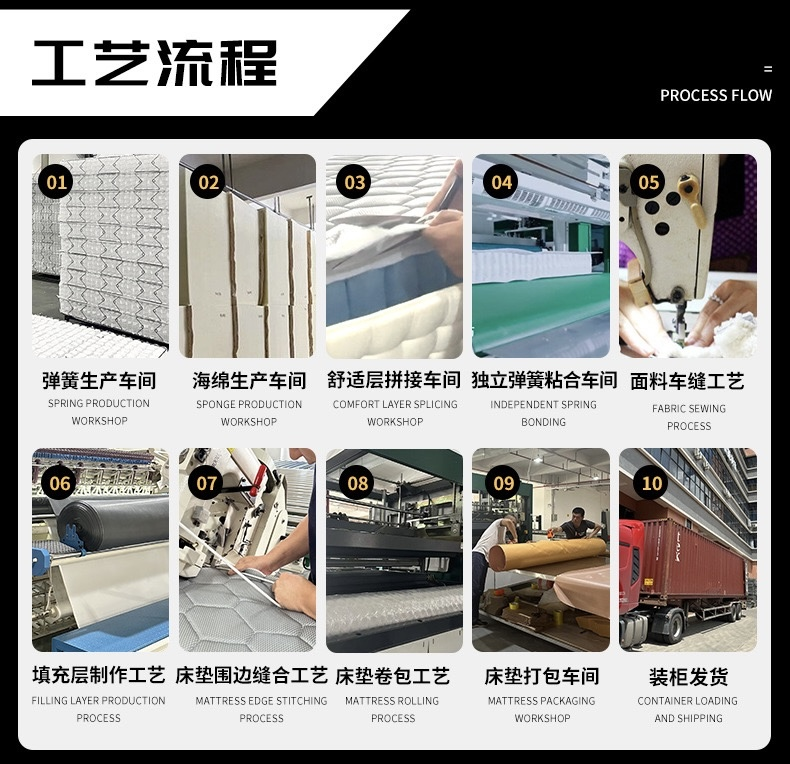

MANUFACTURING PROCESS
1. Wire drawing: 1.8–2.2mm (main), 1.5–1.8mm (connecting)
2. Spring winding: Hourglass shape, 4–6 turns, ±0.5mm tolerance
3. Spring connection: Spiral steel wires + reinforced edge frames
4. Heat treatment: Removes internal stress – improves elasticity
5. Comfort layer: Foam/fiber (1–3cm) + fabric cover (200–350g/m²)
6. Quality inspection: Real-time monitoring, height ±0.5mm
95%+ automation. 20+ equipment types. <0.5% defect rate.
Bonnell Spring Mattress – Competitive Advantages
BUDGET-FRIENDLY:
It's cheaper than a pocket spring system. Perfect for works with money constraints.
PROVEN DURABILITY:
It has compressed over 100,000 times – there is hardly any change in its shape. A good mattress can last about 10–15 years before being replaced.
HIGH LOAD CAPACITY:
A person can weigh up to 120–150kg – it is perfect for accommodating heavy guests in hotels and dormitories.
REINFORCED EDGES:
Metal wire is around perimeter to avoid the edge from bending inward. The mattress surface usable area thus is increased.
HEAT-TREATED SPRINGS:
Straightening the springs – making them more flexible and the mattress longer lasting.
POCKET SPRING vs OPEN COIL – WHICH TO CHOOSE?
The pocket spring: a perfect choice if you want maximum comfort and you can afford it. The price is high. It is suitable only for the most luxurious hotels and exclusive shops.
The open coil (Bonnell): the product is less expensive, very reliable over the years. The mattress type is perfect for cheap hotels, dorms, renting houses apartments and government projects.
Totally, if money is most important consideration and your project requires high-quality bedding that can be trusted for a long time, go for an open coil mattress
Custom Services
Available customization options:
Size: Custom sizes – MOQ 50 units
Thickness: 20/cm22/25 – MOQ 50
Wire diameter: 1.8/2.0/2.2mm – MOQ 100
Spring height: 12/15/18cm – MOQ 100
Edge reinforcement: Standard or strengthened – MOQ 100
Comfort layer: Foam / High-density foam / Memory foam – MOQ 50
Material: Knitting / Jacquard / Custom color – MOQ 50
Logo printing: Your brand - MOQ 100
Presentation: 7–10 days
Large orders: 20–30 days
MOQ: 50 units
CUSTOMIZATION PROCEDURE:
Step 1: Forward a detailed description of the required changes (size, thickness, firmness, quantity)
Step 2: We analyze your needs and budget and propose the right product setup
Step 3: Prototype fabrication: 7–10 days
Step 4: Mass manufacturing: 20–30 days after sample approval
Interested in a tailored offer?
Need a custom estimate? Get in touch with us and let your requirements know – we will respond in less than a day.
ABOUT US
Established in 2002, Hongjiabin specializes in mattress materials and spring technology, integrating R&D, production, and sales for over 20 years.
FACILITY & WORKFORCE:
- 168 employees
- 58,000 m² modern factory
- Full in-house production: from raw material processing to final assembly

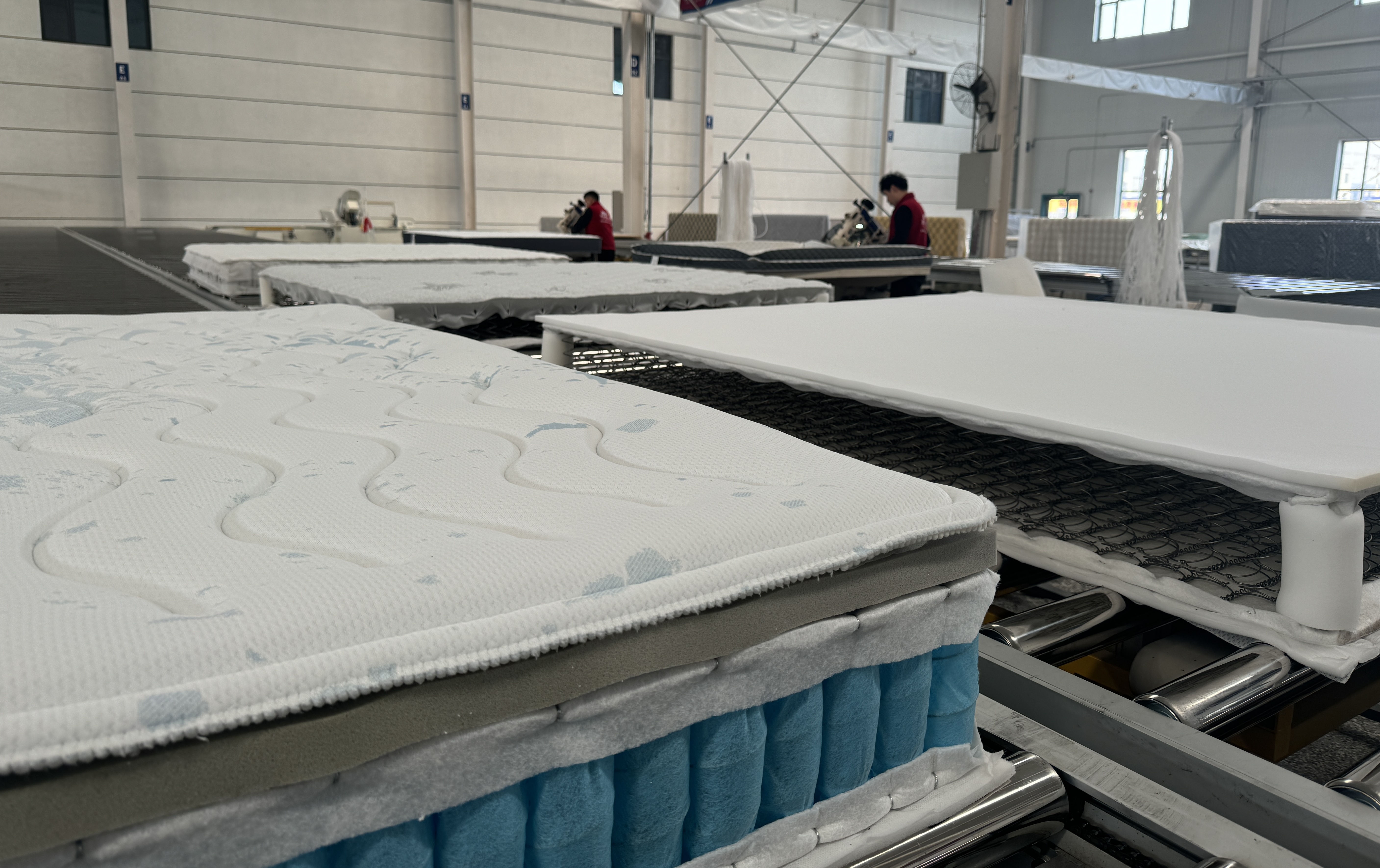

PRODUCTION EQUIPMENT:
- 20+ types of professional manufacturing equipment
- Fully automated pocket spring & Bonnell spring production lines
- Mattress core assembly lines
- Automated rolling and packaging lines
- 95%+ automation rate
PRODUCTION CAPACITY
- 30,000 finished mattresses per month
- 300,000+ mattresses supplied annually
IN-HOUSE SPRING MANUFACTURING
- 100,000 mattress spring cores produced monthly
- Continuous Coil, Bonnell and Pocket Spring systems
- Spring cores supplied both for internal mattress production and external OEM customers
- Complete control from spring production to mattress assembly
QUALITY CONTROL:
- Defect rate: <0.5%
- 80,000+ compression cycle testing
- Real-time monitoring on production lines
- Dedicated QC team ensures consistent quality
CERTIFICATIONS:
- ISO9001, ISO14001
- SGS Test Report No.: GZIN2512005025PL01_EN (spring testing)
- CQM China Green Product Certification
- China Environmental Label (Ten Rings)
- GB/T 4357 (spring steel wire standard)
GLOBAL REACH:
- Exported to 20+ countries (US, Canada, South Africa, Turkey, Southeast Asia, Middle East)
- 200+ long-term global partners
All certificates and test reports available upon request.
Quality Testing Report
Our springs are tested by SGS. Test report available upon request.
SGS Test Report No.: GZIN2512005025PL01_EN
Our Certifications
Environmental Management System Certification No. :17723 EU0066-10ROM
China Environmental Labeling Product Certification No. :CEC2024ELP4225104
China Green Product Certification No. :COM236GPP004397
ORDER & PAYMENT INFORMATION
MINIMUM ORDER QUANTITY (MOQ):
- Sample: 1–5 units
- Bulk standard: 50 units (mixed sizes allowed)
- Bulk custom: 50 units per design
PAYMENT TERMS:
- Method: T/T (wire transfer)
- 30% deposit upon order confirmation
- 70% balance against copy of Bill of Lading
Sample orders: 100% payment in advance.
LOGISTICS & DELIVERY
SHIPPING METHODS & TRANSIT TIME:
- Sea freight (FOB Qingdao/Shanghai): 20–40 days – best for bulk
- Rail freight (Europe/Central Asia): 18–25 days
- Air freight (samples/urgent): 5–7 days
LEAD TIME (from deposit to shipment):
- Sample (1–5 units): 7–10 days
- Bulk standard (50–200 units): 20–25 days
- Bulk custom (50–500 units): 25–30 days
PACKAGING:
- Standard: PE bag + kraft paper + pallet wrap
- Flat-pack: 40–50 units per 20GP, 90–110 units per 40HQ
DOCUMENTS PROVIDED:
- Bill of Lading or Air Waybill
- Packing list with quantities and weights
- Commercial invoice for customs clearance
AFTER-SALES SUPPORT
WARRANTY (15 YEARS):
Spring system: 15 years | Comfort layer: 3–5 years
Covers manufacturing defects under normal use. Excludes wear and tear, improper use, or third-party modification.
Claim response: Within 48 hours with batch number + photos.
Technical support: Free remote guidance. On-site service available upon request.
BENCHMARK PROJECTS
Kowloon Bay Panorama Hotel (China):
- Supplied pocket spring systems for 150+ rooms
- Focus: motion isolation for improved guest sleep quality
- Project completed: 2021

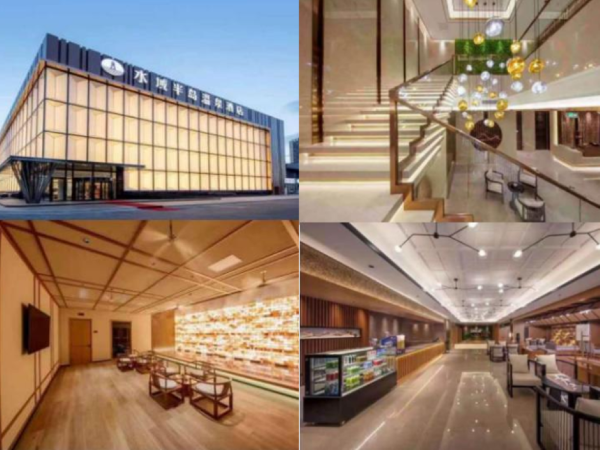

Shenyang Xinglan Resort Hotel (China):
- Custom-designed moisture-resistant mattresses
- Hot spring resort environment – high humidity resistance required
- Project completed: 2022
OUR EXHIBITION
Ulaanbaatar Interior Decoration and Building Materials Expo (Mongolia, October 2025, Booth A33). Showcased Bonnell and pocket spring mattresses. 30+ buyer inquiries received. Brochure available upon request.
