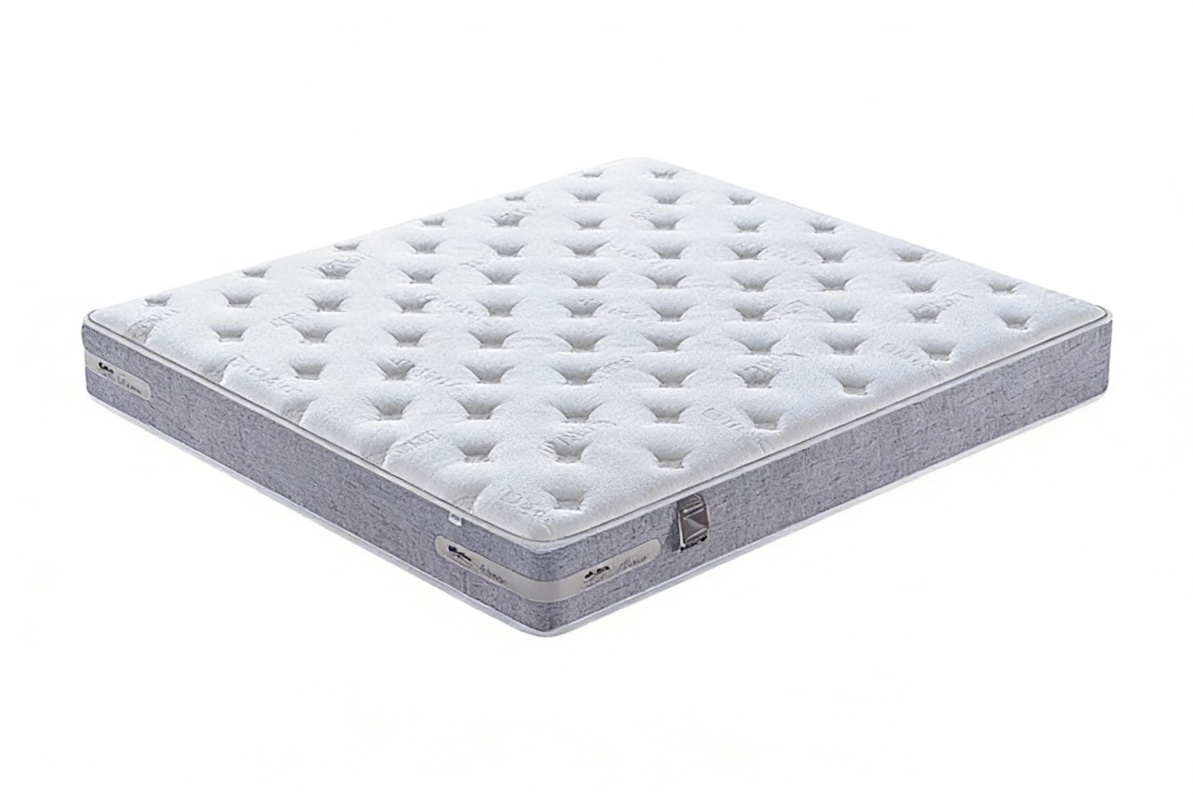

Tight Top Spring Mattress
- Hongjiabin
- Henan
- Determined by the order quantity
- 30,000 pcs/month
1. The mattress offers a solid, uniform supporting surface without any thick layer of padding, thus providing straightforward and dependable support.
2. It is made of high-density foam, antibacterial nonwoven fabric, and needle-punched cotton to ensure a fresh, breathable, and long-lasting sleeping surface.
3. An uncomplicated, tried-and-true framework turns this into an economical, Basic Spring Mattress, a perfect fit for hotels, apartments, and dorms in bulk use.
Product Introduction:
Pillow-top mattresses for hotels and dorms are expensive and take a lot of material and space. Pillow-top is like adding a few layers on top. It results in more materials, more work for delivery guys, more volume for shipping.
But you don't really need extra padding in high traffic areas. You just need a comfortable and reliable support that won't give out with everyday activity and frequent check-ins and check-outs.
Pillow-top also adds to the cleaning and housekeeping burden. The thick padding complicates sheet changes and generates heat.
Our Solution - Tight Top Spring Mattress.
A flat, firm surface without thick cushioning. The mattress is easy to construct and is simple to look after as the thick cushioning layers are absent. It is manufactured and assembled on a durable, long-lasting 10-15 year basis.
Core: Bonnell spring system with reinforcing edge frame and heat-treated coils. Final thickness: 18-22 cm. Load capacity: 120 kg per person.
Comfort layer - high-density foam (28-32D) + antibacterial nonwoven fabric for comfort and hygiene (25g/m²).
Firm support and the mattress that will save your effort and money in maintenance are just two of the great features of this product. It is the type of mattress designed for environments that are always crowded and where convenience is the first consideration.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Basic Info | Product Name | Tight Top Spring Mattress |
| Brand | Hongjiabin | |
| Mattress Type | Tight top (no pillow-top layer) | |
| Finished Thickness | 18–22cm (customizable) | |
| Firmness Level | Medium Firm / Firm | |
| Weight (approx.) | 15–25kg (depends on size) | |
| Spring System | Spring Type | Bonnell coil (hourglass-shaped) |
| Wire Material | High-carbon steel (70# / 72B) | |
| Main Spring Wire Diameter | 2.0mm – 2.4mm | |
| Connecting Wire Diameter | 1.5mm – 1.8mm | |
| Spring Height | 12 – 18cm | |
| Number of Coils per Spring | 4 – 6 turns | |
| Spring Connection | Interconnected by spiral steel wires | |
| Edge Reinforcement | Steel wire frame around perimeter | |
| Heat Treatment | Yes – removes internal stress | |
| Comfort Layer | High-Density Soft Foam | 28 – 32D density |
| Hygiene Layer | Antibacterial nonwoven fabric, 25g/m² | |
| Needle-Punched Cotton | For breathability and comfort | |
| Cover & Fabric | Top Fabric | Knitted fabric |
| Fabric Weight | 200 – 300g/m² | |
| Functional Treatments | Antibacterial, anti-dust mite | |
| Custom Options | Custom color, logo printing | |
| Performance | Load Capacity | 120kg per person |
| Surface Type | Flat, firm – easy for housekeeping | |
| Breathability | Good – open coil design + breathable layers; Air permeability: ≥ 200mm/s per GB/T 5453 | |
| Lifespan | 10 – 15 years under normal use | |
| Customization | Size | Single / Double / Queen / King / Custom |
| Thickness | 18–22cm (adjustable) | |
| Spring Wire Diameter | 2.0–2.4mm (adjustable) | |
| Fabric | Color, pattern, logo printing | |
| Order & Delivery | MOQ – Sample | 1–5 units |
| MOQ – Bulk | 50 units | |
| Sample Lead Time | 7–10 days | |
| Bulk Lead Time | 20–30 days | |
| Supply Capacity | 30,000 units/month | |
| Certifications | Quality | ISO9001, SGS certified |
| Environmental | ISO14001, CQM Green Product, Ten Rings | |
| Warranty | Spring System | 15 years |
| Comfort Layer | 3–5 years |
Core Advantages – Tight Top vs Pillow Top
| Factor | Pillow Top Mattress | Tight Top Mattress (Ours) |
|---|---|---|
| Surface | Thick padded layer | Flat, firm surface |
| Housekeeping | Sheet changes take longer | Quick and easy |
| Material cost | Higher (extra padding layers) | Lower |
| Shipping volume | Bulkier | More compact |
| Lifespan | 8–10 years | 10–15 years |
| Best for | Luxury hotels, home use | Budget hotels, dorms, apartments |
VS POCKET SPRING – WHICH TO CHOOSE?
| Factor | Pocket Spring | Tight Top (Bonnell) |
|---|---|---|
| Motion isolation | Excellent | Moderate |
| Cost | Higher | Lower |
| Surface | Varies (often pillow-top) | Flat, firm |
| Best for | Premium hotels, luxury retail | Budget hotels, dorms, apartments, rental housing |
Bottom line: Choose tight top if you need firm support, easy maintenance, and budget efficiency for high-occupancy projects. Choose pocket spring if you need plush comfort for luxury segments.

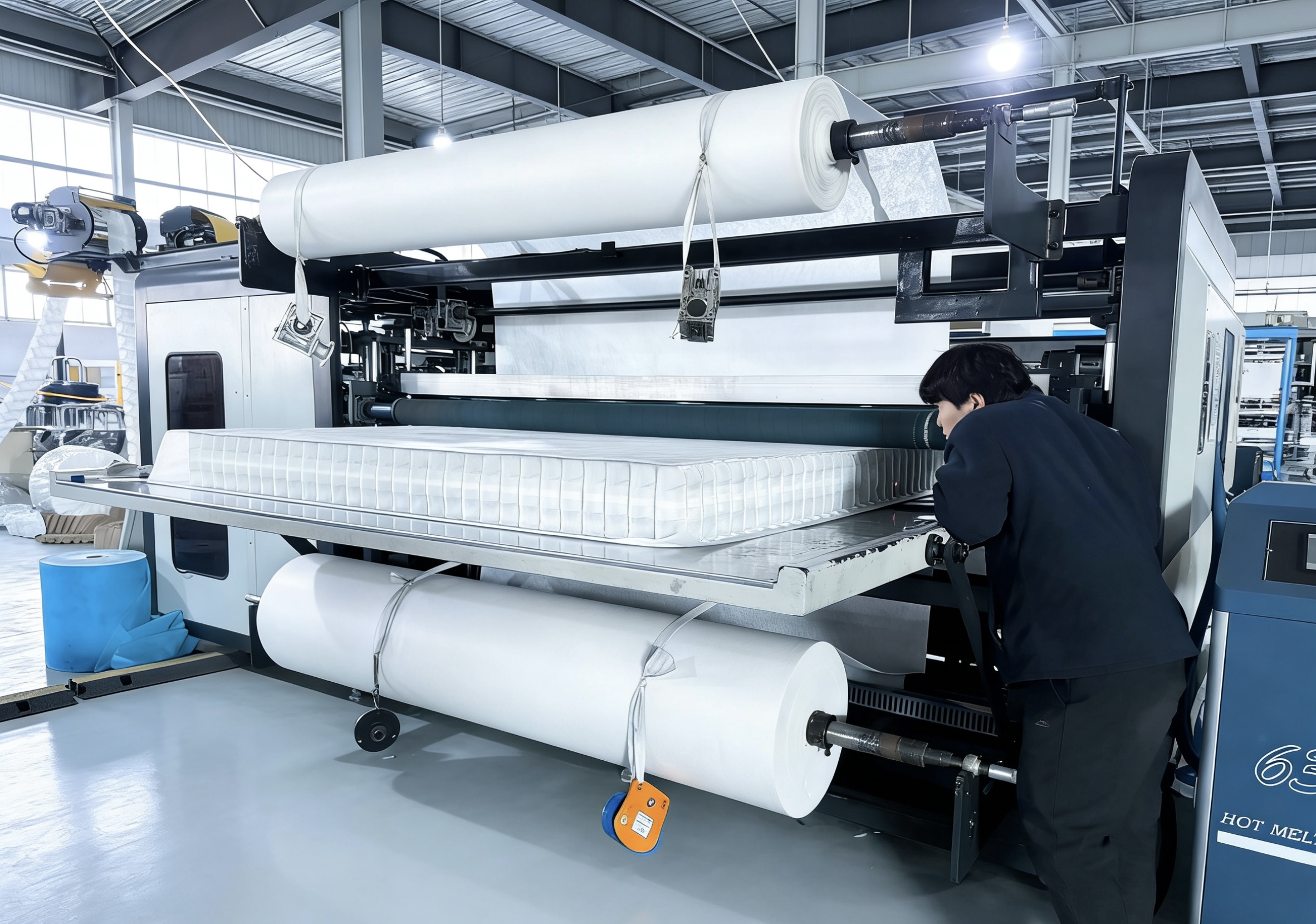

MANUFACTURING PROCESS
1. Stranding wires: 2.0–2.4mm (main), 1.5–1.8mm (connector)
2. Winding a helical spring: Shaped like an hourglass with 4 to 6 turns, with a tolerance of ±0.5mm
3. Hooking springs: Helical steel wires + reinforced edge frames
4. Removing internal stress by heat treatment – thus, elasticity is enhanced
5. Covering comfort layer: High-density foam (28–32D) + antibacterial nonwoven (25g/m²)
6. Cover joining: Knit fabric + tight top finishing
7. Checking quality: Real-time monitoring, height ±0.5mm
Automation rate: Over 95%. 20 types of machines. <0.5% defect rate.
CUSTOMIZATION SERVICES
Tight Top mattress customization centers around fundamental specs – wire thickness, foam density, and mattress final thickness. Plush pillow-top mattresses are different from this mattress, which simply uses different spring gauge, foam density, and not extra padding.
Customizing Options:
- Size: Any size – minimum order quantity 50 units
- Thickness: 18/20/22cm – minimum order quantity 50 units
- Wire diameter: 2.0/2.2/2.4mm – minimum order quantity 100 units
- Spring height: 12/15/18cm – minimum order quantity 100 units
- Foam density: 28D/30D/32D – minimum order quantity 50 units
- Fabric: Color, fabric texture, logo – minimum order quantity 50 units
Customization steps:
- Step 1: Give us your requirements (size, thickness, firmness, amount)
- Step 2: We will suggest a perfect combination of features
- Step 3: Sample: 7–10 working days
- Step 4: Mass production: 20–30 days after the sample is approved
ABOUT US – HONGJIABIN
Established in 2002, Hongjiabin specializes in mattress materials and spring technology, integrating R&D, production, and sales for over 20 years.
FACILITY & WORKFORCE:
- 168 employees
- 58,000 m² modern factory
- Full in-house production: from raw material processing to final assembly
PRODUCTION EQUIPMENT:
- 20+ types of professional manufacturing equipment
- Fully automated pocket spring & Bonnell spring production lines
- Mattress core assembly lines
- Automated rolling and packaging lines
- 95%+ automation rate
PRODUCTION CAPACITY
• 30,000 finished mattresses per month
• 300,000+ mattresses supplied annually
IN-HOUSE SPRING MANUFACTURING
• 100,000 mattress spring cores produced monthly
• Continuous Coil, Bonnell and Pocket Spring systems
• Spring cores supplied both for internal mattress production and external OEM customers
• Complete control from spring production to mattress assembly
QUALITY CONTROL:
- Defect rate: <0.5%
- 80,000+ compression cycle testing
- Real-time monitoring on production lines
- Dedicated QC team ensures consistent quality
CERTIFICATIONS:
- ISO9001, ISO14001, SGS certified
- CQM China Green Product Certification
- China Environmental Label (Ten Rings)
- GB/T 4357 (spring steel wire standard)
GLOBAL REACH:
- Exported to 20+ countries (US, Canada, South Africa, Turkey, Southeast Asia, Middle East)
- 200+ long-term global partners
All certificates and test reports available upon request.
Quality Testing
Our springs are tested by SGS. Test report available upon request. SGS Test Report No.: GZIN2512005025PL01_EN
Certifications:
Environmental Management System Certification No. :17723 EU0066-10ROM
China Environmental Labeling Product Certification No. :CEC2024ELP4225104
China Green Product Certification No. :COM236GPP004397
ORDER & LOGISTICS
MOQ:
- Sample: 1–5 units
- Bulk standard: 50 units (mixed sizes allowed)
- Bulk custom: 50 units per design
Payment:
- 30% deposit, 70% against Bill of Lading (T/T)
Shipping:
- Sea (FOB Qingdao): 20–40 days
- Rail (Europe/Central Asia): 18–25 days
- Air (samples/urgent): 5–7 days
Lead time:
- Sample: 7–10 days
- Bulk standard: 20–25 days
- Bulk custom: 25–30 days
Packaging:
- Standard: PE bag + kraft paper + pallet wrap
- Flat-pack: 40–50 units/20GP, 90–110 units/40HQ
After-Sales Service
Warranty (15 years):
spring system: 15 years
comfort layer: 3–5 years
Covers manufacturing defects, only if the product is not subject to misuse and is used in a regular way.
Defects from wear and tear, improper use, or third-parties changes not covered.
How to file a claim?
Within 48 hours provide a batch number and photos.
Care advice: Free remote assistance. Request for technical services at an industrial plant are possible if you agree on time and budget.
If manufacturing defects occur in goods that you have ordered, after receipt, a complaint may result in a product replacement or a full refund within 30 days.
BENCHMARK PROJECTS
Bijia Mountain Scenic Area Hotel (China):
- Provided roll-packed bonnell spring mattresses to 80+ rooms
- Emphasis on quick and comfortable handling due to the hotel's high visitor turnover at the mountain resort
- Date of completion of the project 2020
Jiulong Bay Panoramic Hotel (China):
- Delivered bonnell spring mattresses for 120+ rooms
- The target was long lasting use through high frequency of mattress usage
- Project end year: 2021
Hot spring resorts (several locations, China):
- Provided moisture resistant pocket spring mattresses
- Focus of the work was resistance to high humidity levels in hot spring environments
- Project years: 2021–2022
References available upon request.
