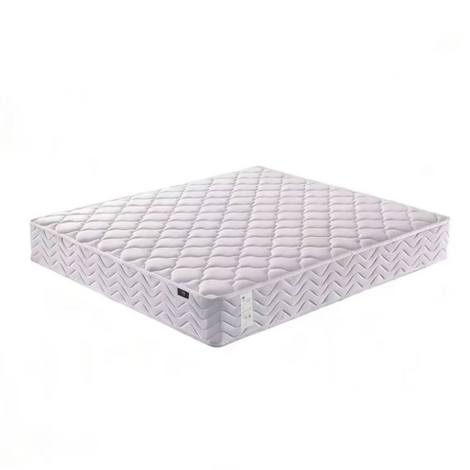

Continuous Coil Mattress
- Hongjiabin
- Henan
- Determined by the order quantity
- 30,000 pcs/month
1、The Endless Spring Mattress is made of a single continuous piece of high-carbon steel wire that forms a network of springs. The springs are connected without any breakage or weld points, giving the mattress an exceptionally strong and beautiful seamless structure.
2、Springs go through a heating and cooling process, which is done in such a way that the internal stresses are eliminated. Consequently, they stay elastic and stable for a very long time, barely getting their shape changed even after being used for a long period of time.
3、The chief components are knitted fabric, sound-absorbing cotton, high-density foam, and antibacterial materials to make the mattress more comfortable.
Product Introduction:
Pain Point – Hotel guests complain about uneven sleeping surfaces.
One of the most frequently heard complaints of guests who have stayed in a hotel or a dormitory is that the bedding feels like a bed of rocks and lumps - i.e., it is quite "uneven" or "lumpy". The reason behind this situation usually turns out to be a breakdown of the old-fashioned "welded springs" at their junctions due to heavy utilization - springs get unhooked, support remains uneven, while the guests get lumps in their beds, they simply donot understand it.
Maintaining and replacing the regular spring mattress system is one of the more costly and time intensive parts of your operation at a hotel or dormitory.. There are also negative reviews that damage your reputation.
Our Technology - Continuous Coil Mattress
We use one continuous steel wire in spiralled form instead of several springs joined together by welding. There are no connection points. No welds. Absolutely nothing to tear apart.
A single wire and one system. The support will be equal throughout the bedding - thus, you will not be able to find anymore lumpy and soft patches as was the case with the old spring systems. Internal durability test: more than 100,000 compression cycles. Requesting a SGS spring material laboratory report is an option for us
Advantages: Even support, no bed related complaints, and the replacement of mattresses will take place less frequently. Fewer replacements. Expected life period: 10–15 years, under standard commercial use conditions.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Basic Info | Product Name | Continuous Coil Mattress |
| Also Known As | Endless Spring Mattress / Mira Coil Mattress / Wire Spring Mattress | |
| Brand | Hongjiabin | |
| Finished Thickness | 20–25cm (customizable) | |
| Firmness Level | Medium (customizable) | |
| Weight (approx.) | 18–28kg (depends on size and thickness) | |
| Spring System | Spring Type | Continuous coil (single wire, no welds) |
| Wire Material | High-carbon manganese steel | |
| Wire Diameter | 1.8mm – 2.2mm | |
| Spring Construction | Single continuous wire construction with no weld points | |
| Number of Coils | 5 – 7 turns | |
| Spring Connection | Interconnected by single wire network | |
| Forming Tolerance | ±0.5mm | |
| Heat Treatment | Yes – eliminates internal stress | |
| Comfort Layer | Sound-Absorbing Cotton | Reduces noise and adds comfort |
| High-Density Soft Foam | Density: 28–32D | |
| Hygiene Layer | Antibacterial and anti-mite nonwoven fabric, 25g/m² | |
| Cover & Fabric | Top Fabric | Knitted fabric (breathable) |
| Fabric Weight | 200 – 300g/m² | |
| Custom Options | Custom color, logo printing | |
| Performance | Compression Cycles | 100,000+ cycles – minimal elasticity decay |
| Load Capacity | 120–150kg per person | |
| Structure Integrity | No weld points – reduces weld-related failure risks | |
| Support Type | Even weight distribution across entire surface | |
| Lifespan | 10–15 years under normal use |
Core Advantages – Continuous Coil vs Other Spring Systems
WHY CONTINUOUS COIL IS DIFFERENT:
| Factor | Welded Spring Systems | Continuous Coil (Ours) |
|---|---|---|
| Spring structure | Individual springs welded together | Single continuous wire – no welds |
| Breakage risk | High – welds can break under pressure | Eliminates weld-related failure points |
| Support consistency | Can become uneven if springs separate | Even weight distribution across entire surface |
| Compression cycles | 30,000–50,000 | 100,000+ cycles |
| Lifespan | 5–8 years | 10–15 years |
| Best for | General use | High-traffic hotels, apartments, dormitories |
VS POCKET SPRING – WHICH TO CHOOSE?
| Factor | Pocket Spring | Continuous Coil (Ours) |
|---|---|---|
| Motion isolation | Excellent | Moderate |
| Structure | Individual wrapped springs | Single wire network |
| Cost | Higher | Lower |
| Breakage risk | Low (each spring independent) | Very Low |
| Best for | Premium hotels, luxury retail | Budget hotels, apartments, dormitories, mass procurement |
VS STANDARD BONNELL – SAME PRICE RANGE, DIFFERENT STRUCTURE
| Factor | Standard Bonnell | Continuous Coil (Ours) |
|---|---|---|
| Spring connection | Spiral wires + welds | Single continuous wire |
| Breakage risk | Moderate (weld points) | Very Low |
| Compressive strength | Good | Exceptional (no weak points) |
| Support type | Even | Even and consistent |
| Cost | Comparable | Comparable |
Bottom line: Opt for Continuous Coil when your project requires the high structural integrity, eliminates the risk of weld breakage, ensures even support and comes at a price that leaves you a little surprised - perfect for high-traffic hotels, apartments, dormitories, and other mass procurement projects.
MANUFACTURING PROCESS
1. Wire preparation: High-carbon manganese steel wire – drawn and straightened
2. Continuous winding: One piece of wire spiraled continuously – 5–7 turns, ±0.5mm deviation
3. Spring connection: A whole grid is made of one wire – there are no welds or joins
4. Heat treatment: High-temperature tempering – the internal force has been removed
5. Comfort layer application: Cotton for absorbing sound + foam with high density (28–32D) + antibacterial non-woven cloth (25g/m²)
6. Cover assembly:Knitted fabric + medium firmness coating
7. Quality inspection: Inspection is done continuously, spring height ±0.5mm, wire thickness checked
More than 95% automated. More than 20 types of equipment. <0.5% faulty products.
CUSTOMIZATION SERVICES
Options for customization are:
Size: Any dimension - MOQ 50 units
Thickness: 20/22/25cm - MOQ 50 units
Wire diameter: 1.8/2.0/2.2mm - MOQ 100 units
Foam density: 28D/30D/32D - MOQ 50 units
Fabric: Color, pattern, custom logo - MOQ 50 units
Edge reinforcement: Standard / Upgraded - MOQ 100 units
Customization procedure:
a) You mail requirements (size, thickness, firmness, quantity)
b) We help choose the combination with best match
c) Getting a Sample : 7 - 10 days
d) Bulk order production : About 20-30 days post sample approval
ABOUT US – HONGJIABIN
Founded in 2002, Hongjiabin is known for mattress materials and spring technology, offering full range of R&D, production, and sales.
The company has been operating continuously for over 20 years.

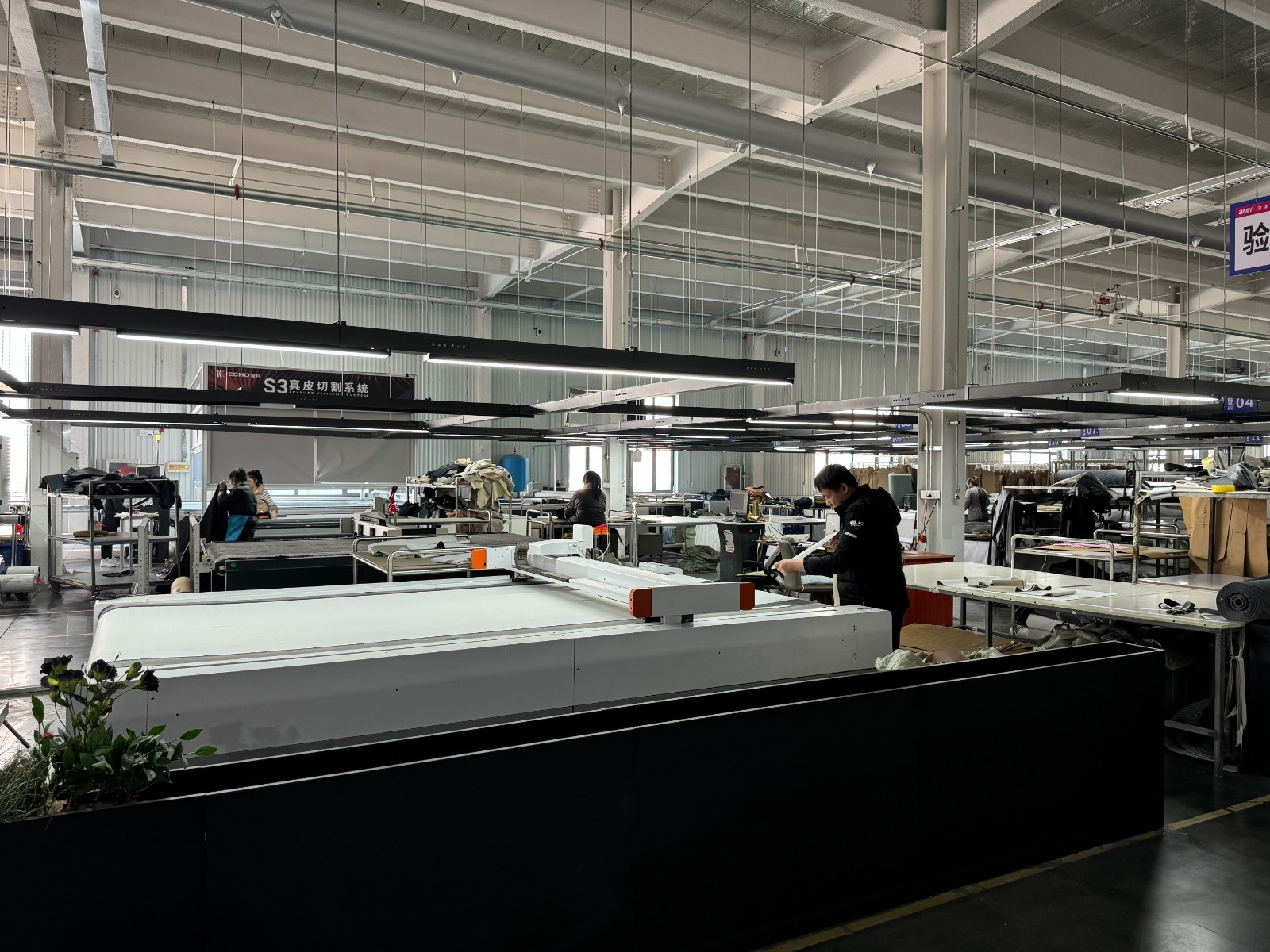

FACILITY & WORKFORCE:
Approximately 168 personnel,
Factory area more than 60 thousand m2 - fully modernized
The entire production chain happens in-house – from the treatment of raw materials up to the finish of the product
PRODUCTION EQUIPMENT:
20+ kinds of professional manufacturing tools,
Automated production lines for pocket spring, Bonnell & continuous coil springs,
Mattress core production systems,
Rolling and packaging automation lines,
Automation rate is more than 95%
Monthly, the factory can produce:
30,000 finished bed covers
And the annual number of mattress units that are being sent on the market is around 3 hundred thousand.
Production of springs at the facility in China:
Every month the factory supplies 100 thousand cores for the mattress springs made in-house,
Bonnel, Continuous Coil, Pocket Spring Systems are offered by Hongjiabin.
Spring cores can be delivered either to the Company’s mattresses or used by their OEM customers.
Having all processes in one place (from the production of spring to assembly of the bed) is the competitive advantage.
Quality Assurance System:
Defect level below 0.5%,;
Compression testing 100,000+ times;
On production lines the quality monitoring is carried out continuously;
A team of QC inspectors has been appointed to the factory.
QUALITY CERITFICATES:
ISO 9001, ISO 14001 and SGS quality certifications,
CQM certification for green products (China Green Product certification),
China Environmental Label (Ten Rings certified product),
Fulfilled standards: GB/T 4357 - a standard for spring steel wire material
We have delivered products in:
Exported to 20+ countries (US, Canada, South Africa, Turkey, Southeast Asia, Middle East)
Quality Testing：
Our springs are tested by SGS. Test report available upon request. SGS Test Report No.: GZIN2512005025PL01_EN
Certifications:
Environmental Management System Certification No. :17723 EU0066-10ROM
China Environmental Labeling Product Certification No. :CEC2024ELP4225104
China Green Product Certification No. :COM236GPP004397
ORDER & LOGISTICS
Minimum order quantity:
• Sample order: 1 piece (paid sample, 100% refundable on bulk order)
• Standard bulk: 50 pieces (mix sizes are allowed)
• Bulk custom: 50 pieces for each design
Payment Methods:
• Standard: 30% paid via telegraphic transfer as deposit + 70% paid before goods delivery
• L/C at sight (upon request; 100% irrevocable)
• Sample order: full payment by bank transfer in advance
Shipping methods and transit time:
• Ocean (FOB Qingdao) -20~40 days (US ~25~35 days, Europe ~35~45 days, SE Asia ~12~18 days)
• Rail (To Europe/Central Asia) -18~25days
• Air for Sample/Urgent -5~7days
Processing period from deposit to shipment:
• Sample -7~10days
• Standard bulk -20~25days
• Bulk customize -25~30days
Packaging:
Basic packaging: Vacuum-compressed roll pack + carton box
Roll-pack:180~220 pieces per 20GP, 400~450 pieces per 40 HQ(savings up to 30~40% on sea freight)
Flat-pack:On request
Import documents
• Bill of Lading
• Air Waybill
• Packing list stating items, quantities, weights
• Invoice for customs clearance
AFTER-SALES SUPPORT
Warranty (15 years):
- Spring system: 15 years
- Comfort layer: 3–5 years
Covers manufacturing defects under normal use.
Excludes wear and tear, improper use, or third-party modification.
Claim response: Within 48 hours with batch number + photos.
Technical support: Free remote guidance. On-site service available upon request.

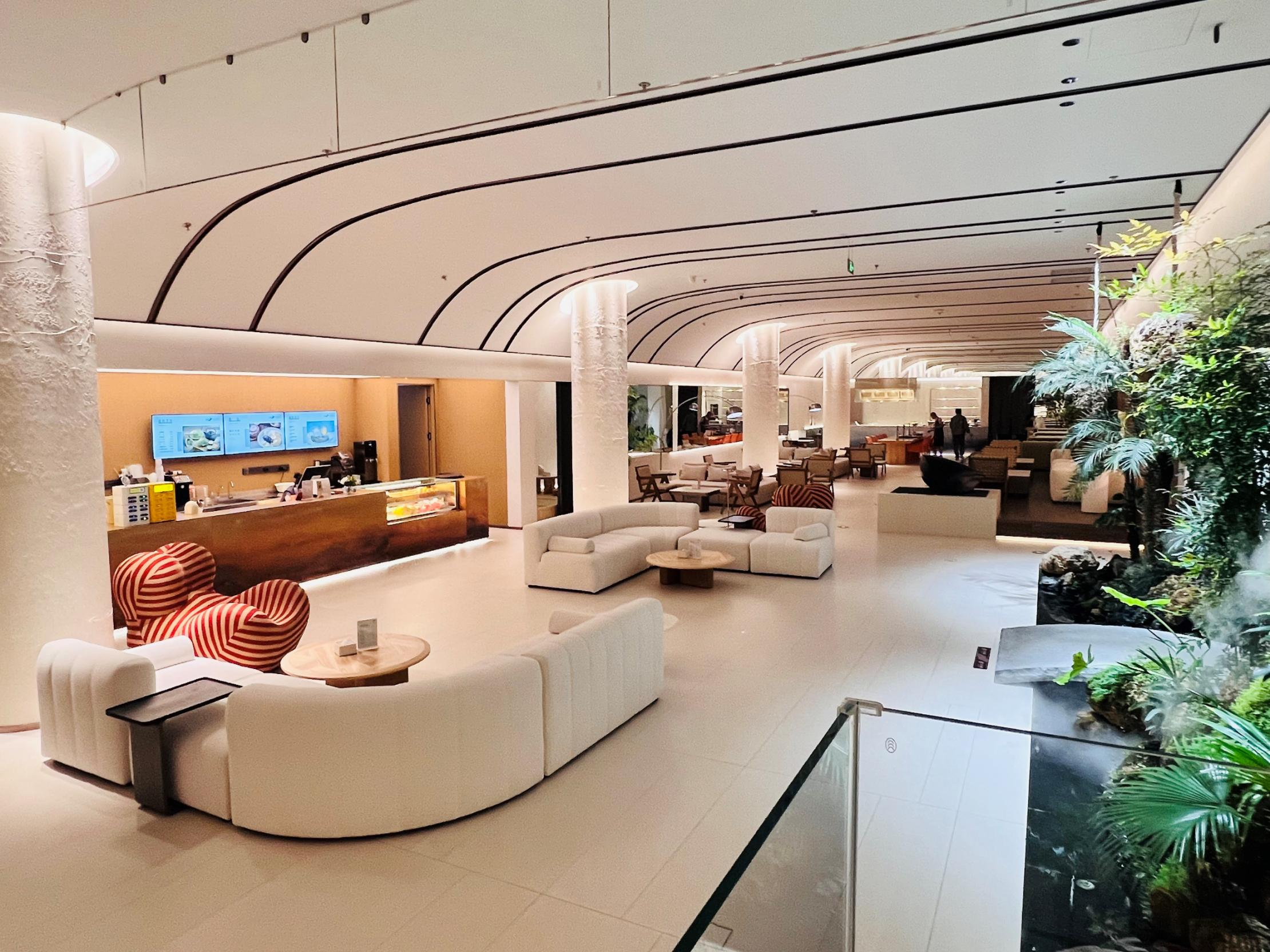

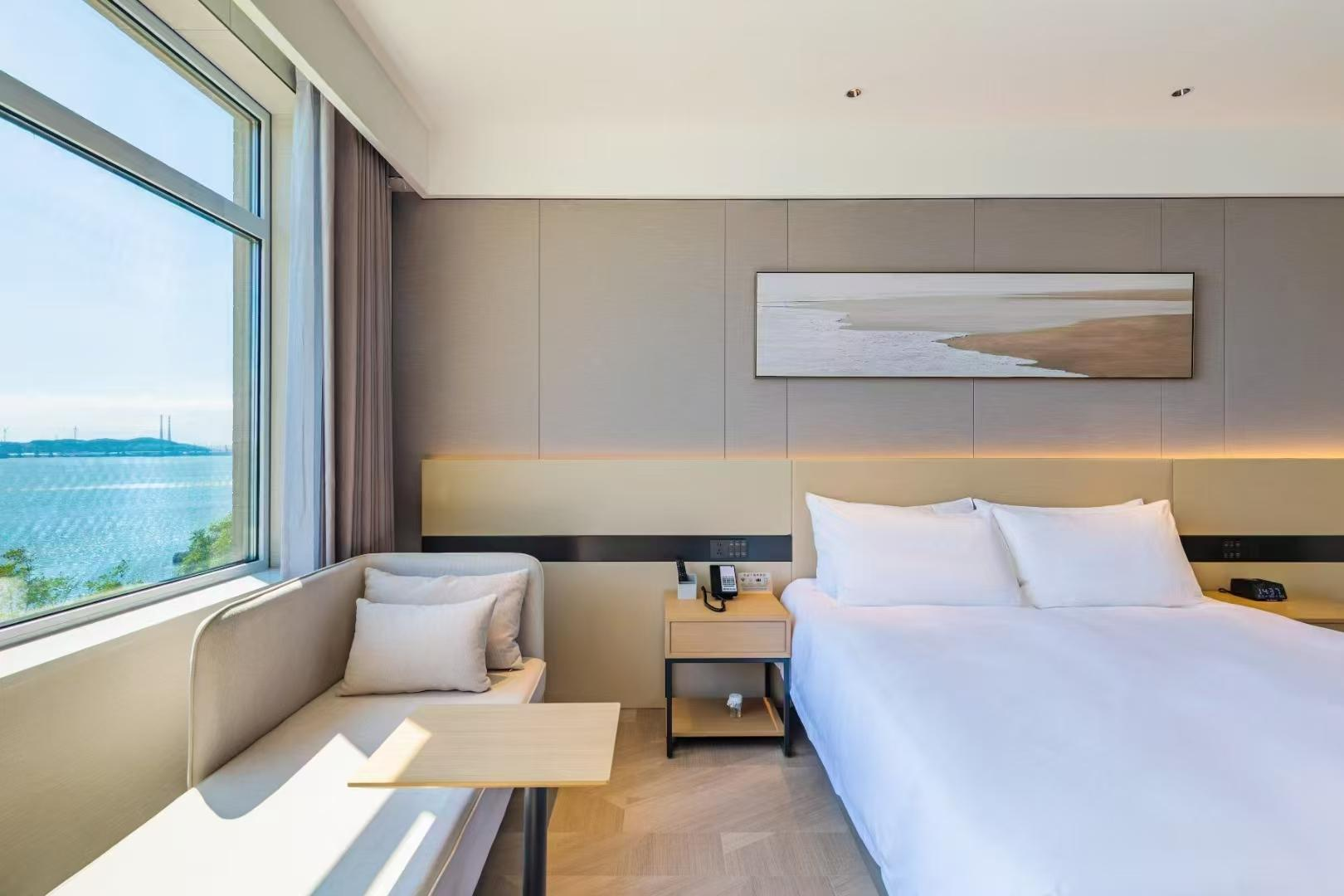

BENCHMARK PROJECTS
Bijia Mountain Scenic Area Hotel (China):
Supplier of roll-packed continuous coil mattresses
Target: easy to handle and comfortable for high tourist demand
Finish date of project: 2020
Kowloon Bay Panoramic Hotel & Bath Center (China):
Supplied mattresses of continuous coil spring
Emphazis: the durability for high-frequency use, and reduced maintenance
Completion of the project: 2021
