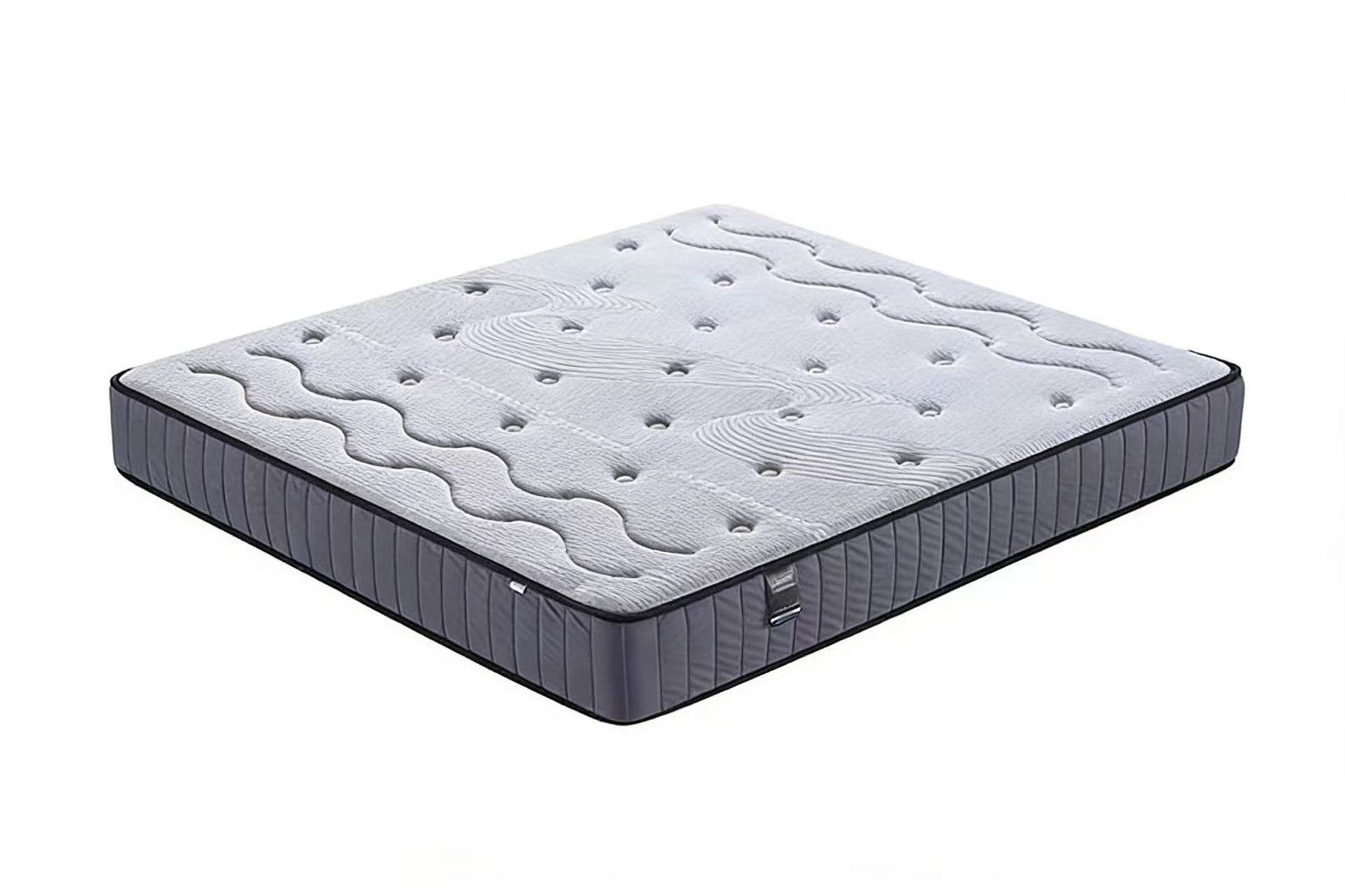

Heavy Duty Innerspring Mattress
- Hongjiabin
- Henan
- Determined by the order quantity
- 30,000 pcs/month
1. The strong spring mattress can carry about 50% more weight than the typical ones, thanks to the use of heavy-duty spring wire (thickness increased up to 3.0mm).
2. Together with heat-treated springs, a heavy-duty edge frame has been used to provide such a strong reinforcement to the mattress structure that it is hard to find a sagging one after a long time. So it is indeed a great idea to maintain the shape of the mattress without sagging for a long time.
3. A good balance between firmness and softness of the mattress is achieved by using both high-density foam and breathable antibacterial layers.
Product Introduction
Pain Point – Standard mattresses are not safe for heavier guests.
Hotel purchasers can’t be the only ones with the problem. In the healthcare sector, for example or dormitory management, the main reason is that a considerable share of the clients is outside the range of weights that the mattress is designed for.
Almost all standard beds, which are rated for a weight between 80–100kg a person, can be ruined by someone heavier who comes on them either from a standing position or when they are sleeping. The springs of the bed, the springs in particular, will gradually lose contact and in about a year (or maybe a year and a half), the edges will collapse. It becomes a guest complaining about back pain and not being well-served.
Outcome: the bed has to be replaced every other year at most, it costs more money, it requires more work by personnel, and the guests are unhappy.
Our Solution – Heavy Duty Innerspring Mattress.
Heavy-duty model is specially developed by us for a heavier weight bearing capacity. Wire thickness is 2.8–3.2mm (standard Bonnell 1.8–2.2mm). Heat-treated springs + heavy-duty edge frame prevent sagging. Load capacity: 200kg per person – approx. 50% more than standard mattresses.
Benefit: no signs of wear after use. It will be durable over the years, it can be used for bariatric patients, in busy hotels or where high levels of usage are expected.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Basic Info | Product Name | Heavy Duty Innerspring Mattress |
| Also Known As | Rigid Coil Mattress / Reinforced Spring Mattress / Solid Spring Mattress | |
| Brand | Hongjiabin | |
| Finished Thickness | 22–25cm (customizable) | |
| Firmness Level | Firm (customizable) | |
| Weight (approx.) | 20–35kg (depends on size and thickness) | |
| Spring System | Spring Type | Heavy-duty Bonnell coil (hourglass-shaped) |
| Wire Material | High-carbon manganese steel | |
| Main Spring Wire Diameter | 2.8mm – 3.2mm (standard: 1.8–2.2mm) | |
| Connecting Wire Diameter | 1.8mm – 2.0mm | |
| Spring Diameter | Upscaled for enhanced load capacity | |
| Spring Height | 12 – 18cm | |
| Number of Coils per Spring | 5 – 7 turns | |
| Spring Connection | Interconnected by spiral steel wires | |
| Edge Reinforcement | Heavy-duty steel frame around perimeter – prevents sagging | |
| Heat Treatment | Yes – high-temperature tempering, removes internal stress | |
| Forming Tolerance | ±0.5mm | |
| Comfort Layer | High-Density Support Foam | 35 – 40D density |
| Hygiene Layer | Antibacterial nonwoven fabric, 25g/m² | |
| Cover & Fabric | Top Fabric | Knitted fabric |
| Fabric Weight | 250 – 350g/m² | |
| Functional Treatments | Antibacterial, anti-dust mite | |
| Custom Options | Custom color, logo printing | |
| Performance | Load Capacity | 200kg per person (≈50% more than standard) |
| Compression Cycles | 100,000+ cycles – minimal deformation | |
| Sagging Resistance | Heavy-duty edge frame + thick wire – prevents sagging | |
| Lifespan | 12–15 years under heavy use | |
| Surface Type | Firm, flat – easy for housekeeping | |
| Certifications | Quality | ISO9001, SGS certified |
| Environmental | ISO14001, CQM Green Product, Ten Rings |
Core Advantages – Heavy Duty vs Standard Mattress
WHY HEAVY DUTY IS DIFFERENT:
| Factor | Standard Mattress | Heavy Duty Mattress (Ours) |
|---|---|---|
| Wire diameter | 1.8–2.2mm | 2.8–3.2mm – 40% thicker |
| Load capacity | 80–120kg | 200kg – ≈50% more |
| Edge frame | Standard steel | Heavy-duty reinforced |
| Lifespan under heavy use | 1–2 years (sags quickly) | 10–15 years – 5x longer |
| Heat treatment | Standard | High-temperature tempering |
| Best for | Light to moderate use | Heavy use, larger body types |
VS POCKET SPRING – WHICH TO CHOOSE?
| Factor | Pocket Spring | Heavy Duty (Ours) |
|---|---|---|
| Load capacity | 100–150kg | 200kg |
| Motion isolation | Excellent | Moderate |
| Cost | Higher | Competitive |
| Best for | Premium hotels, luxury segments | Bariatric use, high-traffic hotels, healthcare |
VS STANDARD BONNELL – SAME SPRING TYPE, BUT UPGRADED
| Factor | Standard Bonnell | Heavy Duty Bonnell (Ours) |
|---|---|---|
| Wire diameter | 1.8–2.2mm | 2.8–3.2mm |
| Load capacity | 120–150kg | 200kg |
| Lifespan | 10–15 years | 12–15 years (even under heavy loads) |
Bottom line: Choose Heavy Duty if your project requires higher weight capacity, maximum durability, and sagging resistance – ideal for hospitals, bariatric care facilities, high-traffic hotels, and dormitories.
MANUFACTURING PROCESS
1. Material preparation: Manganese high carbon steel wire rod is used in this material preparation, which is drawn and straightened.
2. Spring winding: Heavy-duty spring coils are created by winding the spring wire into a coil, in this stage the Bonnell springs are made. The springs have approx. 5-7 coils and there is a very tight tolerance level of ±0.5mm.
3. Spring connection: Spiral steel wires + heavy-duty edge frame
4. Heat treatment: Tempering at high temperatures is conducted in order to eliminate internal stress.
5. Comfort layer application: High-density foam (35–40D) + antibacterial nonwoven (25g/m²)
6. Cover assembly: Knitted fabric + firm top finish
7. Quality inspection: The height tolerance is set at ±0.5 mm and the wire diameter is checked by the staff during the real-time monitoring.
95%+ automation. 20+ equipment types. <0.5% defect rate.
CUSTOMIZATION SERVICES
Available customizations:
- Size: Any dimension – MOQ 50 units
- Thickness: 22/23/25cm – MOQ 50 units
- Wire diameter: 2.8/3.0/3.2mm – MOQ 100 units
- Spring height: 12/15/18cm – MOQ 100 units
- Foam density: 35D/38D/40D – MOQ 50 units
- Fabric: Color, pattern, custom logo – MOQ 50 units
- Edge reinforcement: Standard / Upgraded – MOQ 100 units
Customization process:
- Step 1: Send requirements (size, thickness, firmness, quantity)
- Step 2: We recommend optimal configuration
- Step 3: Sample: 7–10 days
- Step 4: Bulk: 20–30 days after sample approval
ABOUT US
Established in 2002, Hongjiabin specializes in mattress materials and spring technology, integrating R&D, production, and sales for over 20 years.

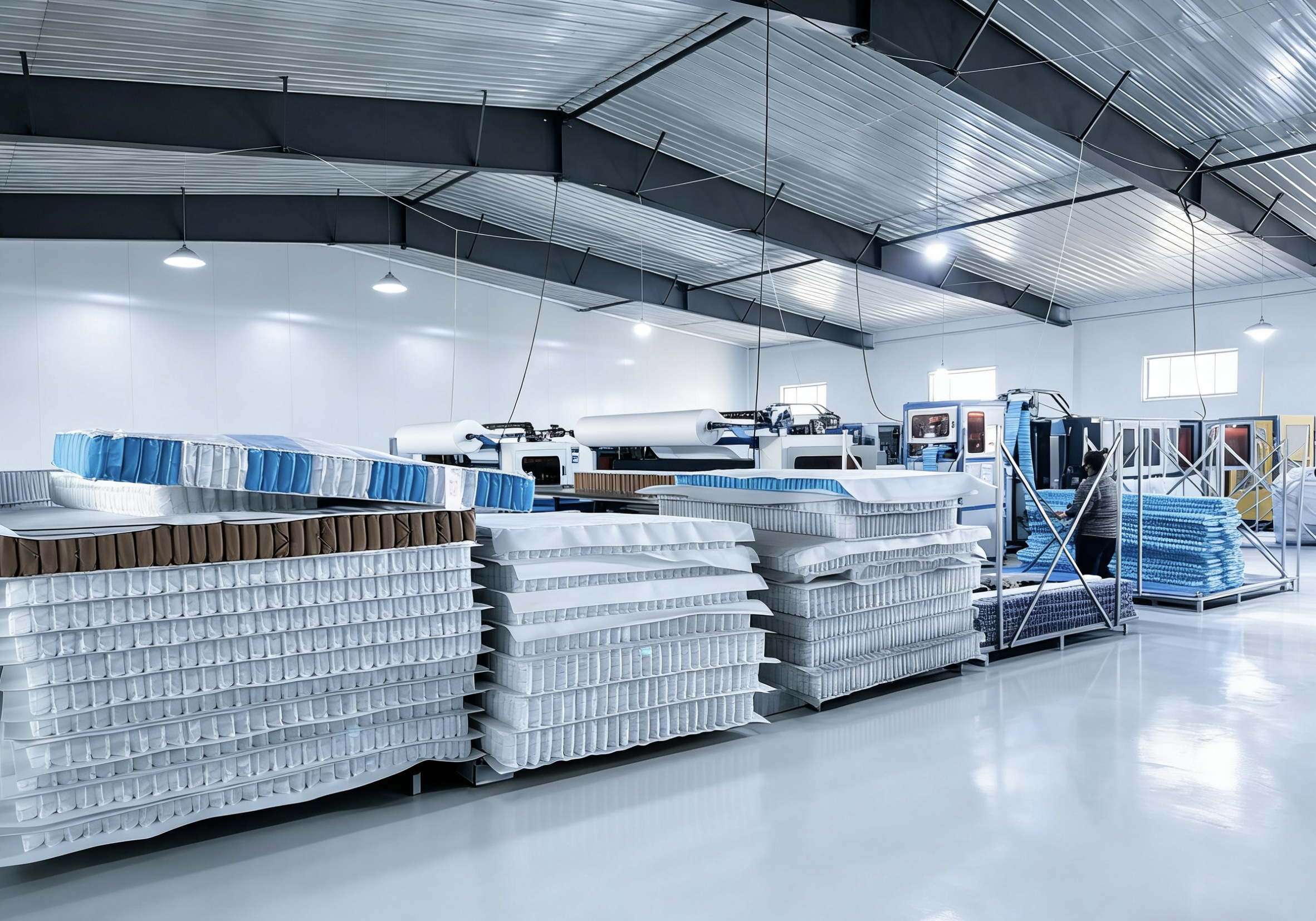

FACILITY & WORKFORCE:
- 168 employees
- 58,000 m² modern factory
- Full in-house production: from raw material processing to final assembly

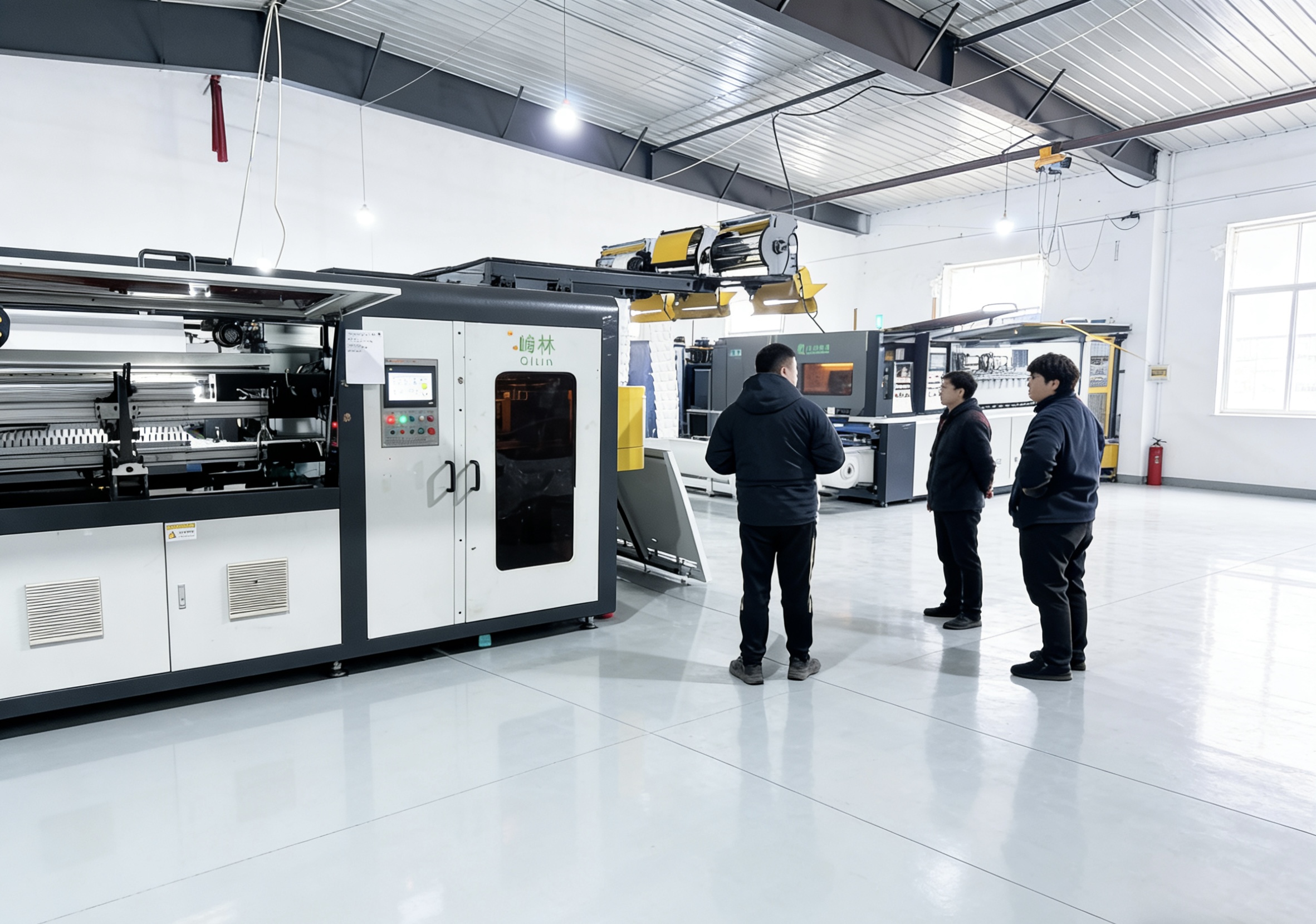

PRODUCTION EQUIPMENT:
- 20+ types of professional manufacturing equipment
- Fully automated pocket spring & Bonnell spring production lines
- Mattress core assembly lines
- Automated rolling and packaging lines
- 95%+ automation rate
PRODUCTION CAPACITY
- 30,000 finished mattresses per month
- 300,000+ mattresses supplied annually
IN-HOUSE SPRING MANUFACTURING
- 100,000 mattress spring cores produced monthly
- Continuous Coil, Bonnell and Pocket Spring systems
- Spring cores supplied both for internal mattress production and external OEM customers
- Complete control from spring production to mattress assembly
QUALITY CONTROL:
- Defect rate: <0.5%
- 80,000+ compression cycle testing
- Real-time monitoring on production lines
- Dedicated QC team ensures consistent quality
CERTIFICATIONS:
- ISO9001, ISO14001, SGS certified
- CQM China Green Product Certification
- China Environmental Label (Ten Rings)
- GB/T 4357 (spring steel wire standard)
GLOBAL REACH:
- Exported to 20+ countries (US, Canada, South Africa, Turkey, Southeast Asia, Middle East)
- 200+ long-term global partners
All certificates and test reports available upon request.
Quality Testing：
Our springs are tested by SGS. Test report available upon request. SGS Test Report No.: GZIN2512005025PL01_EN
TEST REPORT
Certifications
Environmental Management System Certification No. :17723 EU0066-10ROM
China Environmental Labeling Product Certification No. :CEC2024ELP4225104
China Green Product Certification No. :COM236GPP004397
ORDER & LOGISTICS
MOQ:
- Sample: 1–5 units
- Bulk standard: 50 units (mixed sizes allowed)
- Bulk custom: 50 units per design
Payment:
- 30% deposit, 70% against Bill of Lading (T/T)
Shipping:
- Sea (FOB Qingdao): 20–40 days (US ~25 days, Europe ~35 days, SE Asia ~12 days)
- Rail (Europe/Central Asia): 18–25 days
- Air (samples/urgent): 5–7 days
Lead time (from deposit to shipment):
- Sample: 7–10 days
- Bulk standard: 20–25 days
- Bulk custom: 25–30 days
Packaging:
- Standard: PE bag + kraft paper + pallet wrap
- Flat-pack: 35–45 units/20GP, 85–105 units/40HQ
Documents:
- Bill of Lading or Air Waybill
- Packing list with quantities and weights
- Commercial invoice for customs clearance
AFTER-SALES SUPPORT
Warranty (15 years):
- Spring system: 15 years
- Comfort layer: 3–5 years
Covers manufacturing defects under normal use.
Excludes wear and tear, improper use, or third-party modification.
Claim response: Within 48 hours with batch number + photos.
Technical support: Free remote guidance. On-site service available upon request.
BENCHMARK PROJECTS
Kowloon Bay Panoramic Hotel & Bath Center (China):
- Supplied roll-packed heavy-duty spring mattresses
- Focus: durability for high-frequency use, reduced maintenance needs
- Project completed: 2021
Bijia Mountain Scenic Area Hotel (China):
- Supplied heavy-duty Bonnell spring mattresses
- Focus: high comfort + durability for high-traffic tourism
- Project completed: 2020
References available upon request.
OUR EXHIBITION
Ulaanbaatar Interior Decoration and Building Materials Expo (Mongolia, October 2025, Booth N02). Showcased Bonnell and pocket spring mattresses. 30+ buyer inquiries received. Brochure available upon request.
