Mini Independent Pocketed Coil
- Hongjiabin
- Henan
- Determined by the order quantity
- 100000 pcs/month
1、One of the main features of the pocket coil is the small diameter of the wire and close spacing. By installation 400-600 springs per square meter, this method achieves a very dense distribution of support points.
2、A wire diameter of 0.9mm-1.6mm is chosen in order to make the spring softer and more responsive. Such a spring is able to follow body shape and therefore is suitable for comfort layer of a mattress.

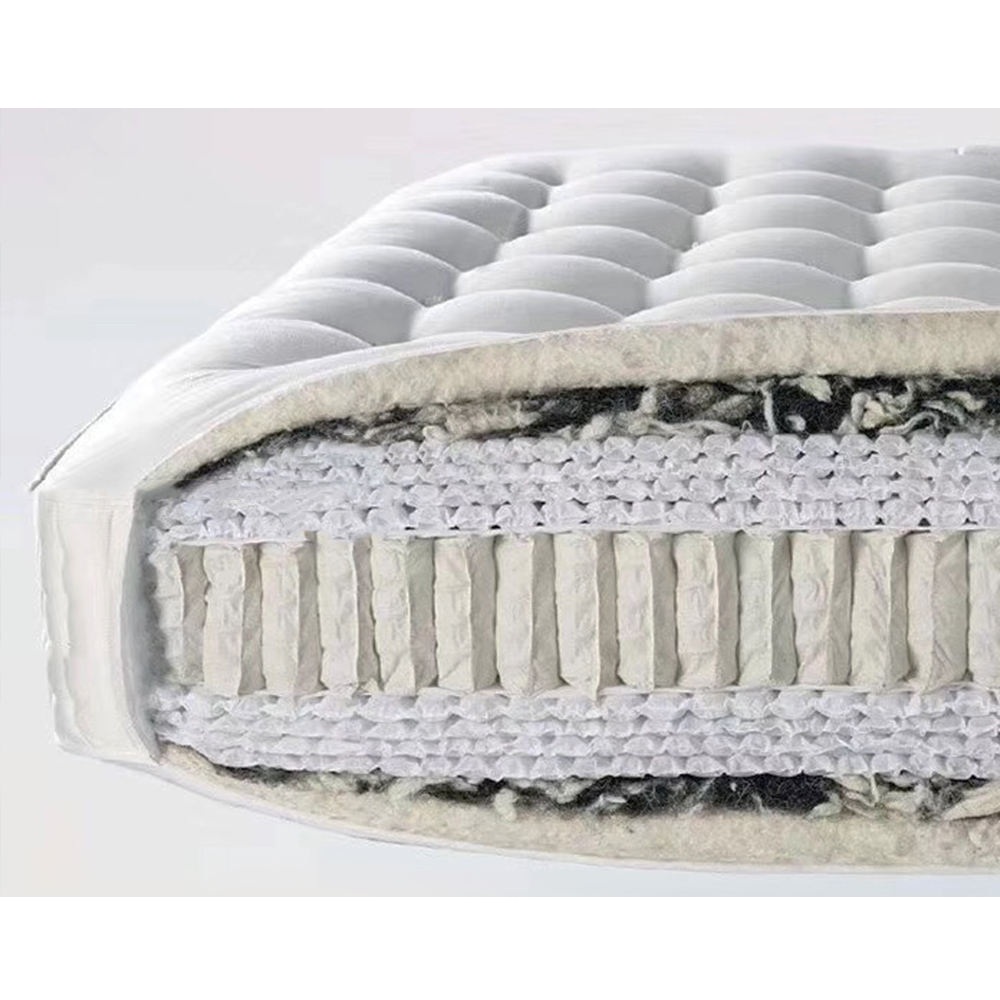

3、In most cases, they are working together with the main support springs to form a double-layered composite structure.
Product Introduction:
For mattress manufacturers and distributors, a significant challenge is achieving soft comfort yet durable support in the comfort layer. Regular foam or fiber comfort layers can quickly lose their shape, tend to retain heat, and can't deliver the kind of targeted pressure relief that the human body requires—which can result in angry customers complaining and returning the product.

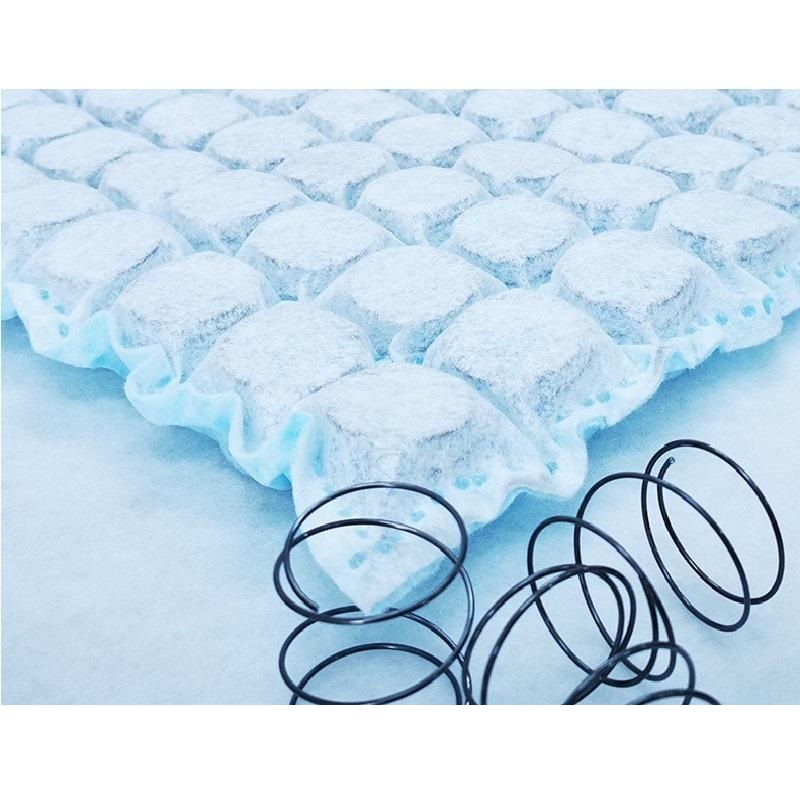

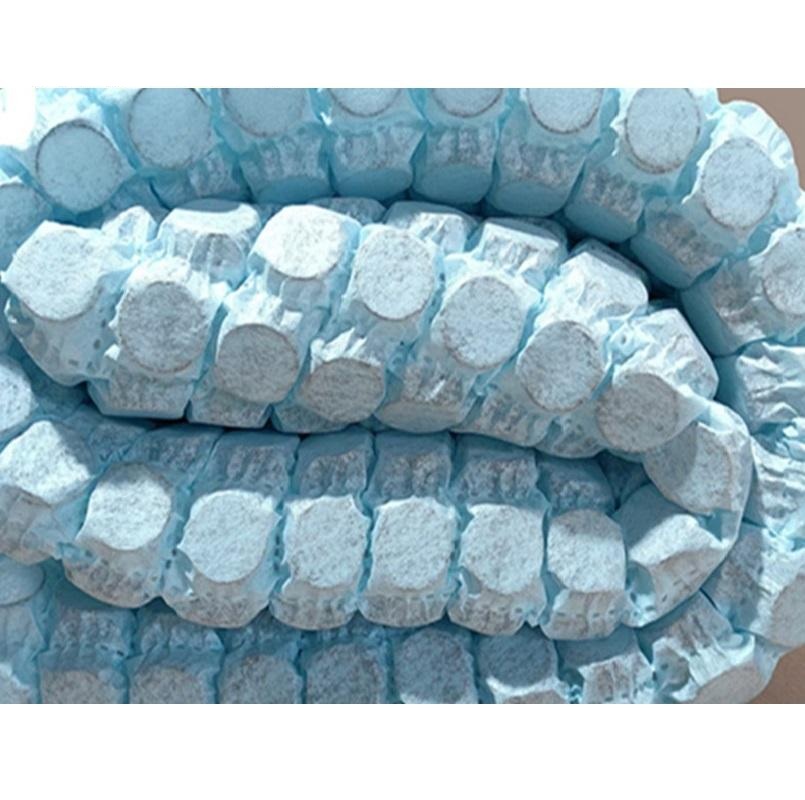

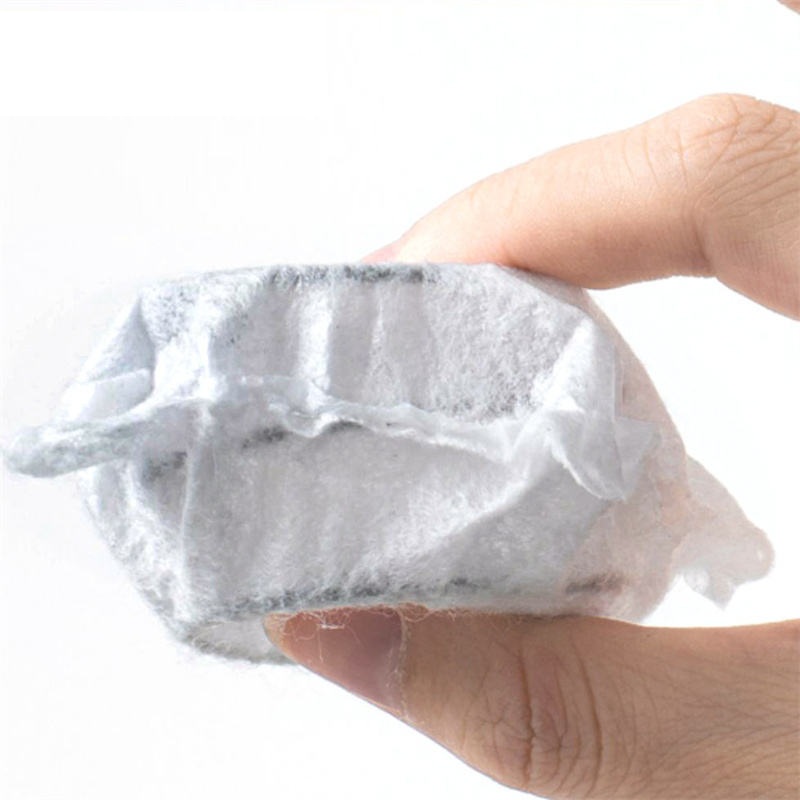

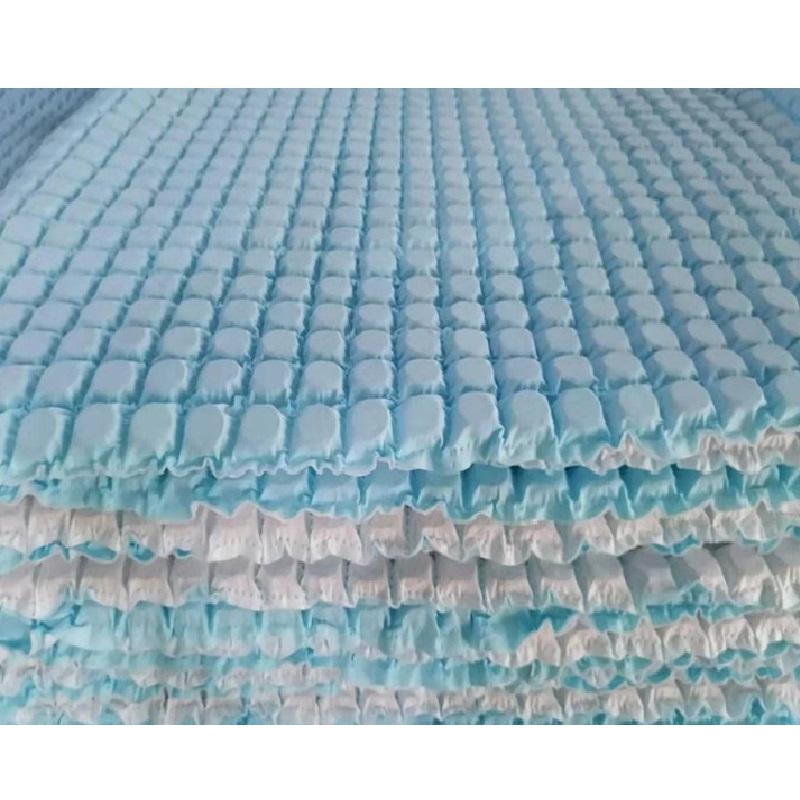

What we suggest is a mini pocketed coil unit system. There are 400–600 coils per m², and the super fine wire has a thickness of merely 0.9mm–1.6mm. It is through the combination of these miniature springs and the ultra-high density they provide that one is able to get an exact and body-like contouring of the body curve. Every single spring is individually wrapped in a very high strength nonwoven fabric of 50–50gsm and ultrasonically or adhesive-bonded to form a stable grid. When it is used as a comfort layer on top of the support springs a double layer design, motion transfer can be significantly minimized, the ventilation improved and the lifespan of the mattress extended—all resulting in a superior comfort system that you would get less of product returns from and much higher satisfaction in customer level.
CORE ADVANTAGES – Mini Independent Pocketed Coil
1. HIGH-DENSITY PRESSURE RELIEF
Up to 600 springs/square meter (wire Ø 0.9–1.6mm). Every spring functions individually, responding to body shapes while the pressure points are eased by 30–40% when compared to foam or traditional coils.
2. ANTI-SAGGING STABILITY
Single ultrasonic/adhesive bonded grid system. The mattress keeps its shape even after 80,000 cycles of compression, losing only 8% height – that is like ten-plus nightly uses per year.
3. BREATHABLE & LIGHTWEIGHT
Open coil setup keeps dust free and minimizes dampness. At the same time, it is a lightweight core since the core weight is just between 25–35% of a foam core equal thickness. As such, the costs of transportation are greatly reduced.
Technical Specification
| Parameter | Details |
|---|---|
| Spring Type | Mini Marshall (pocketed) coil |
| 2Wire Diameter (steel) | 0.9mm / 1.2mm / 1.4mm / 1.6mm (±0.03mm) |
| Spring Outer Diameter | 2.5cm / 3.0cm / 3.5cm / 4.0cm / 4.5cm / 5.0cm / 6.0cm |
| Spring Height (pre-loaded) | 6cm / 8cm / 10cm / 12cm / 15cm / 18cm / 20cm / 24cm (±2mm) |
| Number of Coils | 4 / 5 / 6 / 7 turns |
| Fabric Material | 100% polypropylene nonwoven |
| Fabric Weight | 50gsm / 60gsm / 70gsm (±3gsm) |
| Spring Density | 400 / 450 / 500 / 550 / 600 springs per m² |
| Connection Method | Hot melt adhesive bonding (EVA/PA) or ultrasonic welding |
| Unit Size (typical) | Customizable: width 100–220cm, length 190–220cm |
| Load Capacity (single spring) | 8–25 N (varies by wire Ø & height) |
| Fatigue Resistance | >80,000 compression cycles (loss <8% height) |
| Warranty | 5–10 years for spring fatigue |
| MOQ | 500 pcs per specification |
| Supply Capacity | 100,000 pcs/month |
| Lead Time | 25–35 days |
| Brand | Hongjiabin |
Custom Services:
We provide customizations in wire gauge, spring height, spring diameter, and fabric material to accommodate different uses, such as mattress comfort layers, sofa cushions as well as back cushions. For bulk orders, you can talk about packaging methods and delivery schedules.
ABOUT US
Established in 2002, Jilin Hongjia Bin boasts more than 20 years of mattress spring R&D and manufacturing experience.

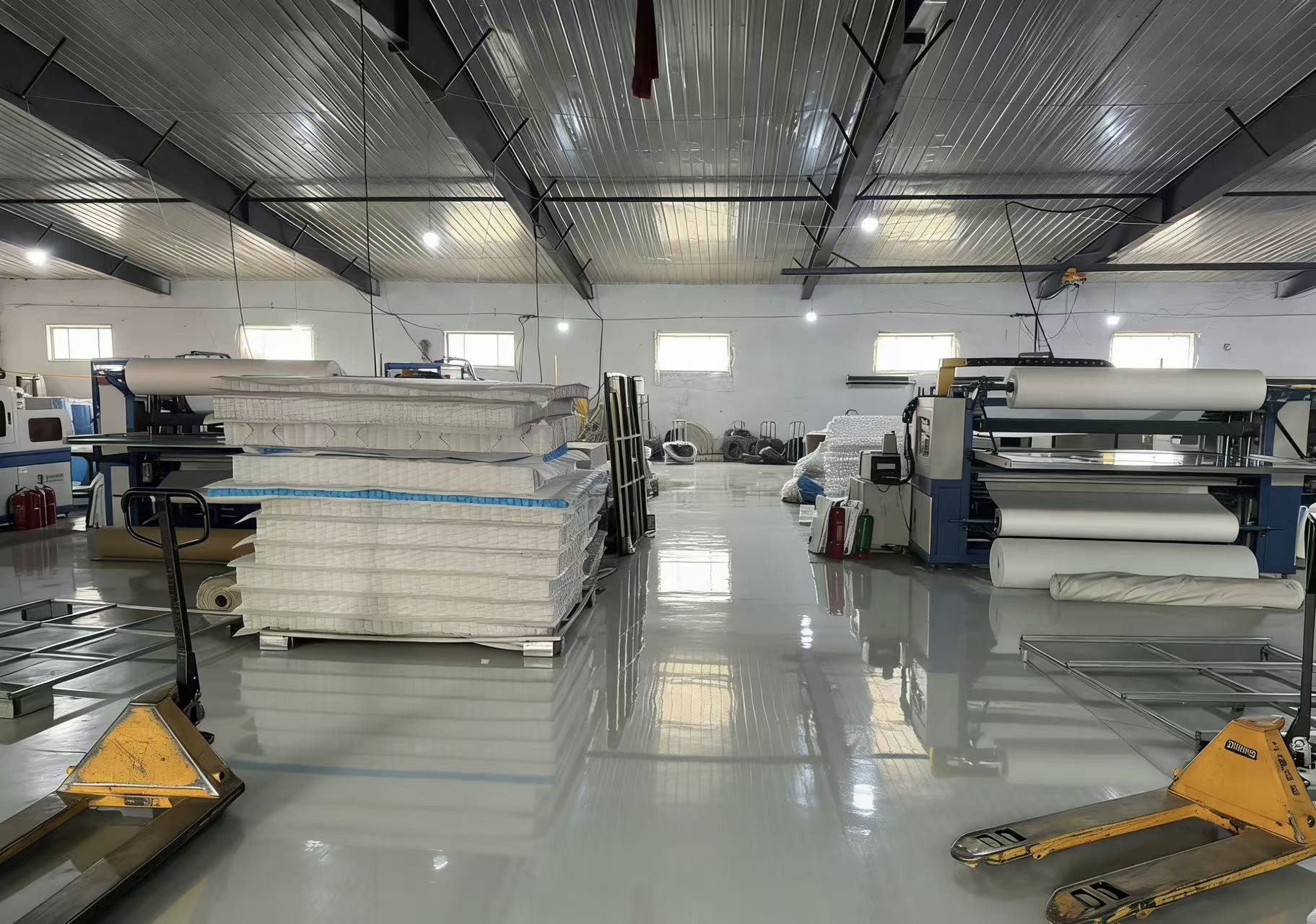

The firm has 168 employees working in a 58,000-square-meter factory, that is equipped with 20 different types of professional equipment, with 95% automation on average.
The company has an independent spring R&D team, and our automated production lines guarantee product uniformity from the raw material stage to the finished product.
Monthly production:
- 30,000 finished mattresses per month
- 300,000+ mattresses supplied annually
IN-HOUSE SPRING MANUFACTURING
- 100,000 mattress spring cores produced monthly
- Continuous Coil, Bonnell and Pocket Spring systems
- Spring cores supplied both for internal mattress production and external OEM customers
- Complete control from spring production to mattress assembly
Our products are sold in more than 20 countries such as the US, Canada, South Africa, Turkey, Southeast Asia, and the Middle East, and we have over 200 worldwide customers.
OurQuality Testing Report
Hongjiabin springs have received SGS certification and they have been tested according to the standards of material composition, tensile strength, and durability. This is the reason why these springs can still perform well even in high-frequency usage environments.
Our Certifications
Our products hold ISO9001 and ISO14001 certifications, supporting that production processes are standardized and controlled, as well as environmentally compliant. Additionally, our products are granted CQM China Green Product Certification and China Environmental Label Certification (Ten Rings), which confirm an environmentally friendly way of work from raw materials to finished products. We have also received SGS certification for our production system.
Environmental Management System Certification No. :17723 EU0066-10ROM
China Environmental Labeling Product Certification No. :CEC2024ELP4225104
China Green Product Certification No. :COM236GPP004397
After-Sales Support:
1. Warranty: 15-year coverage against material and workmanship defects under normal use conditions. (Excludes normal wear and tear, improper use, or third-party modification.)
2. Technical Support: Our team (10+ years of industry experience) provides remote assistance and on-site support for installation, adjustment, and maintenance.
3. Custom Maintenance Plans: Available for long-term customers based on project volume and usage conditions.
Claim process: Contact us with batch number and issue description – response within 24 hours.
Manufacturing Process:
Our main focus is on mattress spring research and development as well as manufacturing.
We have fully automatic spring winding machines and integrated spring producing lines.

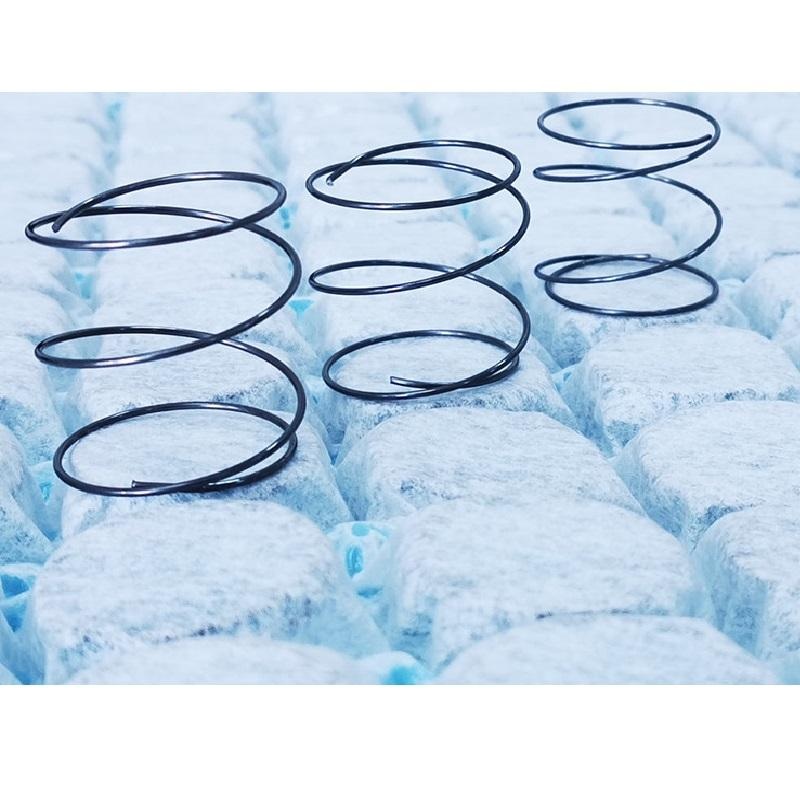

The mini springs are produced by means of high-precision winding machines, with size errors being kept within ±0.5mm.
The fabric pockets are closed either by heat adhesive bonding or by ultrasonic welding; ultrasonic welding is a more environmentally friendly, odorless, and stronger method.
Our production line is equipped with real-time monitoring and quality control to provide consistent spring dimensions and uniform rebound.
Logistics and Shipping:
Delivery Time:
About 25 to 35 days after your payment deposit and after the final specification approval has taken place.
25 days only for orders under 5,000 units:
30–35 days: orders more than 5,000 units or custom specifications
Shipping Methods:
We offer shipping via sea, train, or truck, you get to pick the shipping mode that serves you best.
Packaging:
Normal: Shrink film plus wooden pallets and protection of the edges
Pallet: 1100mm x 1100mm or 1200mm x 1000mm
Loaded: 25–50 pieces per pallet (depends on spring height)
The loading capacity of containers: 20GP (~250–300 units), 40HQ (~550–650 units)
Sales Reach:
We currently export to 20+ countries and our markets include the US, Canada, South Africa, Turkey, Southeast Asia, the Middle East, etc. We deliver to various destinations around the world.
Payment Terms:
30% of down payment when the customer confirms the order
70% rest amount after sending the copy of L/C (or before shipment in case of first purchase order)
Exhibitions:
In 2024, two of our major efforts will be participating in the Seoul International Building Materials Expo in South Korea and the Almaty Construction Expo in Kazakhstan.
We will show mini spring samples at the Seoul Expo and discuss the use of dual-layer composite structures with local mattress companies. Our focus at the Almaty Expo will be on how min-spriugs can be used in sofa cushions and, therefore, we will meet engineering clients.
During 2024-2025, our company will participate in two construction expos, the first one will be held in Mongolia, Ulaanbaatar and the second one in Uzbekistan, Tashkent. At the first construction expo, we are going to launch mini spring and main support spring combinations to hotel buyers. At the second expo, we will go over the customization scope and delivery schedule of mini springs with importers.
