Sofa Pocket Spring
- Hongjiabin
- Henan
- Determined by the order quantity
- 100000 pcs/month
1、Before packaging, the springs are compressed to about two-thirds of their initial length, effectively increasing the initial tension as well as providing a good resilient comfort that is steady over time.
2、The ultrasonic side-sealing technique does not fully compress springs, thereby ensuring their individual movement without interference.
3、High-density distribution makes it possible to transfer the load uniformly to a number of spring units. This way, they become perfect for the sofa cushions that are used most of the time.
Product Introduction:
The majority sofa manufacturers hear two complaints: firstly, the cushions go limp forever, secondly — they refer to it as a "hammock effect", the seat in the middle depresses, the edges bounce up. Traditional systems based only on foam or sinuous springs are not capable of supporting different sitting positions independently.
Our way is to make a sofa pocket spring system.

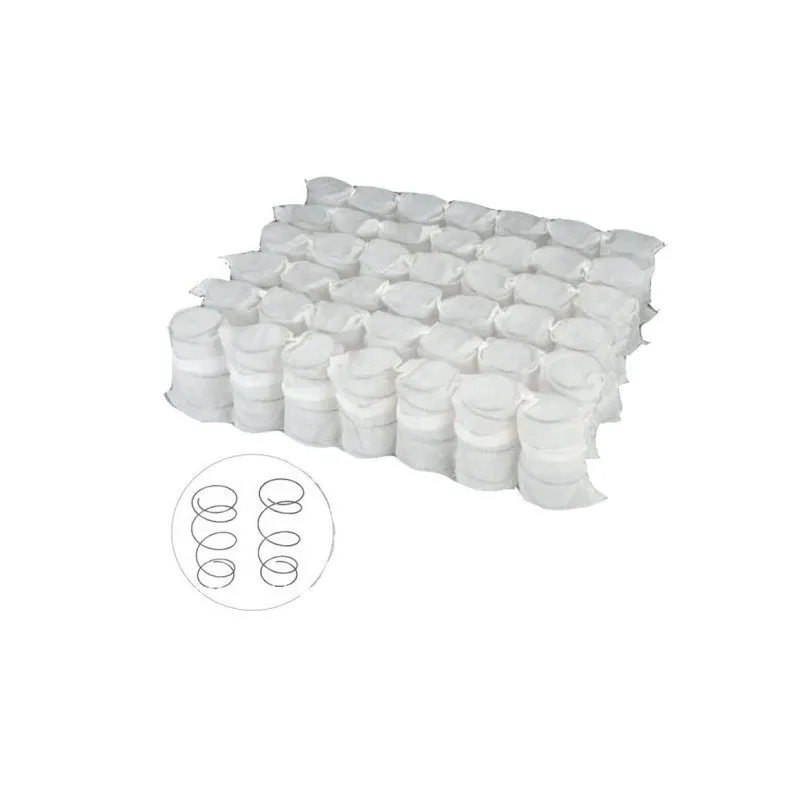

One spring unit is individually sheathed with nonwoven fabric. Then it is bonded through a seam by ultrasonic. That is to say, the contact of the springs is avoided so they cannot affect each other. Furthermore, prior to putting the product together, we will give each spring a little compression by 1/3 from its first size. This action will develop the spring's tension. Therefore, through tens of thousands compressions over time, the spring will still be in a position where a little pressure makes it respond to the user by its own elastic force. We have an approximate rate of 400-500 springs per square meter, hence if you place a weight or person of weight on the chair the weight of it will be transferred and shared among a number of units which prevents the spring from local sagging. It is possible to cover the base layer with foam or latex. In this case, the frame will support the body of the person and the distribution is soft and progressive. No sensation of "pummeling" the seat.
The product's life span of the cushion would be increased. Customer's complaint and replacement rate will also decrease. Besides that, an enhanced experience will be obtained when the customer is sitting on the seat.
CORE ADVANTAGES – Sofa Pocket Spring Unit
1. 15% LESS STEEL, LOWER COST
In comparison with conventional sinuous and open coils, the material cost savings of the sofas made of our spring units is very significant due to about 15% lower steel use.
2. LONGER FATIGUE LIFE
The height reduction under 80.000 dynamic compression cycles (per ASTM D3574, 50–80kg) was less than 5%.
3. STRONG POCKET & SEAL
Fabric: 100%-200%-nonwoven with high tear resistance more than 80N (ASTM D5733)
Ultrasonic seal: can hold up to 50N static tensile force per pocket without glue (no odour)
4. INDEPENDENT & STABLE
Thanks to the new design where the springs can independently move and the mattress is fixed at three points through glue application, this type of mattress is considered as the best one of the family.
Technical Parameters
| Parameter | Details |
|---|---|
| Product Name | Individually Pocketed Sofa Spring Unit |
| Spring Type | Marshall coil (pocket spring) |
| Wire Material | High-carbon steel (70# / 72B / 82B optional) |
| Wire Diameter | 1.0mm / 1.1mm / 1.2mm / 1.3mm / 1.4mm (±0.02mm) |
| Spring Outer Diameter | 2.5cm / 3.0cm / 3.5cm / 4.0cm |
| Spring Height (free) | 3cm / 4cm / 5cm / 6cm / 8cm / 10cm (±1mm) |
| Spring Height (pre-compressed) | 2/3 of free height (e.g., 6cm → 4cm) |
| Number of Coils | 3–5 turns |
| Initial Tension | Pre-compression applied before packaging |
| Spring Density | 400 / 450 / 500 springs per m² |
| Pocket Fabric | Nonwoven polypropylene (50–70gsm) |
| Sealing Method | Ultrasonic welding (no glue, no odor) |
| Connection Between Springs | Heat adhesive bonding (EVA) or ultrasonic spot welding |
| Load Capacity (per spring) | 10–30 N (depends on wire Ø and height) |
| Compression Cycles | 80,000+ cycles (height loss <5%) |
| Typical Application | Sofa seat cushions, back cushions, loveseats, ottomans |
| Combination With | Foam wrap / latex wrap / fiber wrap on top |
| MOQ | 500 pcs per specification |
| Sample Lead Time | 7–10 days |
| Bulk Lead Time | 25–35 days |
| Supply Capacity | 100,000 pcs/month |
| Brand | Hongjiabin |
Custom Services:
We support customization of wire diameter (1.0–1.4 mm), spring height (30–100 mm), spring diameter (25–40 mm), spring density, and pocket spring unit dimensions. Different configurations can be developed for seat cushions, back cushions, armrests, and other upholstered furniture applications. OEM labeling, custom packaging, and project-specific designs are also available to support furniture manufacturers and private-label brands
About Us
Hongjia Bin, established in 2002, has spent over 2 decades researching, developing, and manufacturing springs. The workforce of the company consists of 168 employees, and the production area covers about 58,000 square meters with the company operating over 20 kinds of special-purpose machines and being able to automate 95% of the production process. In addition, we also have our own spring R&D team and, therefore, can control the situation completely from the procurement of raw materials to production.
Production Capacity
- 30,000 finished mattresses per month
- 300,000+ mattresses supplied annually
In-house Spring Manufacturing
- 100,000 mattress spring cores produced monthly
-Continuous Coil, Bonnell and Pocket Spring systems
-Spring cores supplied both for internal mattress production and to exterior OEM customers
-From the spring production stage till the mattress assembly step, the Company retains all the power and rights
We mainly export our products to 20+ countries with major markets in the US, Canada, South Africa, Turkey, Southeast Asia regions as well as the Middle East where we are proud to be one of the key manufacturers serving over 200 global partners around the world.
CERTIFICATIONS & QUALITY VERIFICATION
ISO9001 & ISO14001:
We have ISO9001 is for quality management. ISO14001 is for environment management. These certs show our production is controlled and standard. It meets international environment rules too.
China Green Certifications:
China Green Product Certification we hold. Also China Environmental Label, called Ten Rings. These prove green compliance. From raw material to finished product, all steps are checked.
SGS & Third-Party Testing:
SGS checked our factory already. Independent labs test our spring wire. They test tensile strength and elastic limits. Results meet GB/T 4357 standard. This is China national standard for spring steel wire.
All certificates are shown below. Copies available upon request.
Our Certificates
Environmental Management System Certification No. :17723 EU0066-10ROM
China Environmental Labeling Product Certification No. :CEC2024ELP4225104
China Green Product Certification No. :COM236GPP004397
Our SGS Quality Testing Report
OUR MANUFACTURING PROCESS
We start with high-carbon steel wire. Grades are 70#, 72B, 82B. We draw wire to target diameter. Then we temper it. This removes internal stress.
For spring winding, we use fully automated machines. They hold spring height and diameter within ±0.5mm. Machine programming controls coil count.
Before packaging, we pre-compress each spring. It goes to about 2/3 of free height. This gives initial tension. Resilience stays consistent over time.
For pocket sealing, we use ultrasonic welding or high-frequency side-sealing. Both make strong seams. No top seal is there. Each spring can move by itself. Seating comfort is preserved.
Assembly and bonding: springs are arranged automatically. Target density is 400 to 500 springs per square meter. Then we bond them with three-point heat adhesive spray.
Our QC has online monitoring systems. A dedicated QC team is there too. They check spring height, wire diameter, and fabric seal strength. Quality is consistent. Rebound is uniform.
Order & Payment Information
Minimum Order Quantity (MOQ)
Sample order: 1–5 pieces
Bulk order: 500 pieces per specification. It can also be negotiated as per the project volume.
Payment Conditions:
Bank transfer
30% deposit after order confirmation
70% against copy of the Bill of Lading
Note: For brand new orders or those coming from high-risk regions, the payment term may be up to 70% before the shipment. Our long-term customers may request other favorable terms.
LOGISTICS & SHIPPING
Sample delivery time is 7 to 10 days after order confirm.
Bulk order with standard specs: 25 to 30 days after deposit confirm.
Bulk order with custom specs: 30 to 35 days after spec approval.
For shipping, we have four methods.
Sea freight from Qingdao or Shanghai port. This is best for bulk orders.
Rail freight goes to Europe and Central Asia.
Road transport is for regional deliveries.
Air freight we can do for sample orders. Just ask us.
Packaging is standard.
We shrink-wrap each unit. Then we put on pallet. Edge protection is added.
Pallet size is 1100mm x 1100mm. Or 1200mm x 1000mm.
Each pallet holds about 25 to 50 units. Depends on spring height.
Custom packaging is possible. You tell us the material, labeling, and carton size. We make it for you.
After-Sales Support:
After-sales support for our spring products.
Warranty is 15 years.
Covers material and making defects. Normal use only.
We repair or replace free. You pay return shipping.
Not covered: normal wear, wrong use, or third-party changes.
Claim steps: Send batch number. Describe problem. Add photos or videos. Tell purchase date. We reply within 48 hours.
Technical support team has 10+ years in spring systems. They help remote by phone. On-site support also possible. Depends on location and project size.
Custom maintenance plans for big long-term buyers. Talk to us about your volume and use.
You pay return shipping for bad items. We ship replacement parts free.
International Exhibitions:
In 2024, we participated in the Seoul International Building Materials Expo (South Korea). We exhibited various Sofa Pocket Spring products and zoned spring configurations, and engaged with local sofa manufacturers on technical parameters.
In the second half of 2024, we will be at the Almaty Construction Expo (Kazakhstan), where we will present our bulk customization capabilities and delivery schedules to engineering clients.
In 2024, we attended Mongolia's Ulaanbaatar Construction Expo to showcase our cold-resistant spring materials to hotel buyers.
In 2025, we will be at Uzbekistan's Tashkent Construction Expo, where we will discuss eco-friendly processes and custom zoned spring configurations with importers.
